MBC800-1T48

Active

Bel Power Solutions

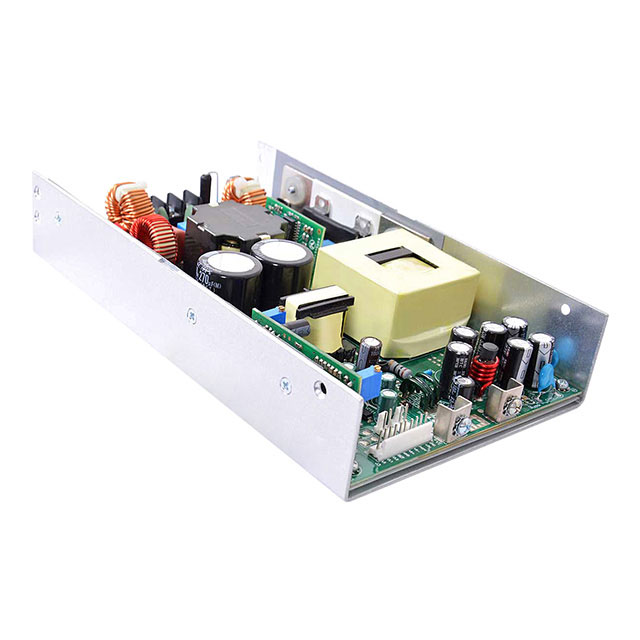

OPEN FRAME POWER SUPPLY 800W 48V

Search across all available documentation for this part.

Active

Bel Power Solutions

OPEN FRAME POWER SUPPLY 800W 48V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 390 VDC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MBC800-1T48	MBC800 Series

Applications	Medical	Medical
Approval Agency	cUL, NEMKO, UL, CE	cUL, NEMKO, UL, CE
Current - Output 1	12.5 A	12.5 - 25 A
Efficiency	93 %	93 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	800 W, 600 W	600 - 800 W
Size / Dimension [x]	216 mm	216 mm
Size / Dimension [x]	8.5 in	8.5 in
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [y]	5 "	5 "
Size / Dimension [z]	41 mm	41 mm
Size / Dimension [z]	1.61 "	1.61 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC, 390 VDC	264 - 390 VAC
Voltage - Input [Min]	120 VDC, 85 VAC	85 - 120 VDC
Voltage - Isolation	4.245 kV	4.245 kV
Voltage - Output 1	48 V	24 - 48 V

OPEN FRAME POWER SUPPLY 800W 48V

Part	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Type	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Number of Outputs	Features	Power (Watts)	Voltage - Isolation	Mounting Type	Approval Agency	Applications
Bel Power Solutions MBC800-1T48	48 V	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	93 %	Open Frame		85 VAC, 120 VDC	264 VAC, 390 VDC	12.5 A	1	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	600 W, 800 W	4.245 kV	Chassis Mount	CE, cUL, NEMKO, UL	Medical
Bel Power Solutions MBC800-1T24	24 V	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	93 %	Open Frame		85 VAC, 120 VDC	264 VAC, 390 VDC	25 A	1	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	600 W, 800 W	4.245 kV	Chassis Mount	CE, cUL, NEMKO, UL	Medical
