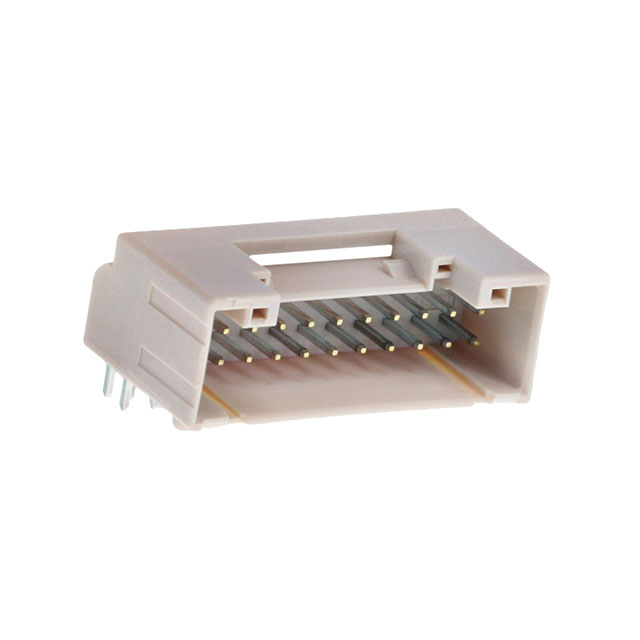

S22B-PUDSS-1

Active

JST Sales America Inc.

CONN HEADER R/A 22POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 22POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S22B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Color	Contact Type	Number of Rows	Mounting Type	Material Flammability Rating	Connector Type	Features	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Style	Insulation Material	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Height	Insulation Height	Voltage Rating	Termination	Contact Finish - Post	Number of Positions
JST Sales America Inc. S22B-PUDSS-1	Natural	Male Pin	2	Through Hole Right Angle	UL94 V-0	Header	Board Guide	0.079 in	2 mm	0.118 in	3 mm	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	Latch Holder	Copper Alloy	-25 °C	85 °C	Square	All	3 A	0.079 in	2 mm	Shrouded - 4 Wall	0.335 "	8.51 mm	250 VDC	Solder	Tin	22 positions

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 22 position 0.079" (2.00mm)
