162A10069X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	162A10069X

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Type	Signal
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

Part	Mounting Type	Connector Type	Shell Material, Finish	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Termination	Number of Positions	Number of Rows	Contact Finish	Connector Style	Voltage Rating	Dielectric Material	Current Rating (Amps)	Shell Size, Connector Layout	Contact Material	Shell Size, Connector Layout
Amphenol CONEC 162A10069X	Through Hole	Receptacle Female Sockets	Steel Yellow Chromate Plated Zinc	Signal	-55 °C	125 °C	DE E	1	Housing/Shell (Unthreaded)	Solder	9	2	Gold	D-Sub	125 VDC
Amphenol CONEC 162A10059X		Receptacle Female Sockets	Steel Yellow Chromate Plated Zinc	Signal	-55 °C	125 °C			Housing/Shell (Unthreaded)		50	3	Gold	D-Sub		Polyester	5 A	5	Copper Alloy
Amphenol CONEC 162A10099X
Amphenol CONEC 162A10089X
Amphenol CONEC 162A10079X
Amphenol CONEC 162A10049X		Receptacle Female Sockets	Steel Yellow Chromate Plated Zinc	Signal	-55 °C	125 °C			Housing/Shell (Unthreaded)		37	2	Gold	D-Sub		Polyester	5 A		Copper Alloy	4 (DC C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 5.45

General part information

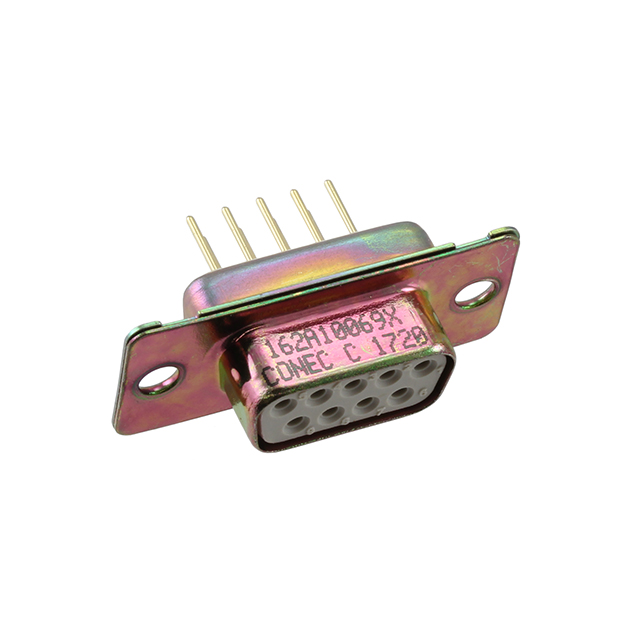

9 Position D-Sub Receptacle, Female Sockets Connector
