SF1521-60045

Active

Amphenol SV Microwave

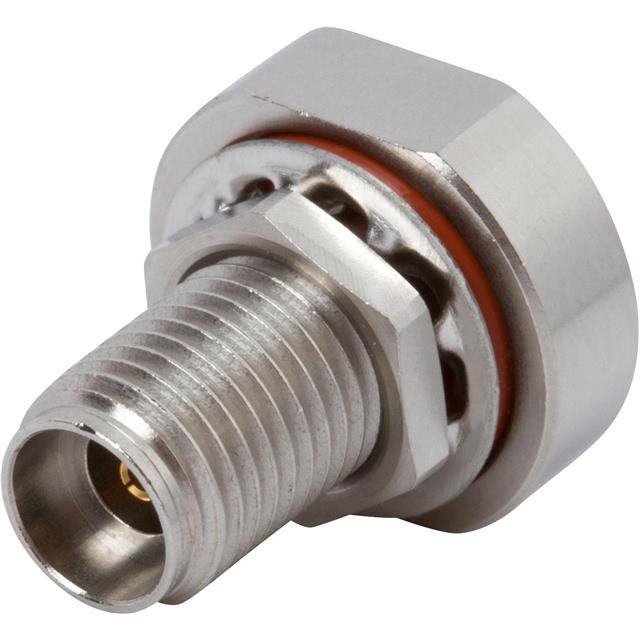

2.92MM FEMALE BULKHEAD CONNECTOR FOR .047 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF1521-60045

Active

Amphenol SV Microwave

2.92MM FEMALE BULKHEAD CONNECTOR FOR .047 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1521-60045

Body Material	Stainless Steel
Cable Group	Flexible
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder

SF1521 Series

Part	Dielectric Material	Mounting Type	Number of Ports	Shield Termination	Contact Termination	Connector Style	Connector Type	Mating Cycles	Body Material	Cable Group	Cable Group	Impedance	Center Contact Plating	Housing Color	Frequency - Max [Max]	Center Contact Material	Insertion Loss	Features	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Mounting Feature
Amphenol SV Microwave SF1521-60042	Polyetherimide (PEI)	Free Hanging (In-Line)	1	Solder	Solder	2.92 mm	Female Socket Jack	500	Stainless Steel	RG-402 (.141" Flexible)	0.141 in	50 Ohms	Gold	Silver	34 GHz	Beryllium Copper
Amphenol SV Microwave SF1521-60025	Polyetherimide (PEI)	Free Hanging (In-Line)	1	Solder	Solder	2.92 mm	Female Socket Jack	500	Stainless Steel	RG-405	0.085 in	50 Ohms	Gold	Silver	40 GHz	Beryllium Copper
Amphenol SV Microwave SF1521-60150		Board Edge End Launch	1	Screw	Compression	2.92 mm	Female Socket Jack	500	Stainless Steel			50 Ohms	Gold	Silver	40 GHz	Beryllium Copper	0.253 dB	Mounting Hardware	-65 ░C	165 °C	1 Connector 2 Screws
Amphenol SV Microwave SF1521-60124		Surface Mount	1	Screw	Compression	2.92 mm	Female Socket Jack	500	Stainless Steel			50 Ohms	Gold	Silver	40 GHz	Beryllium Copper			-65 ░C	165 °C		Flange
Amphenol SV Microwave SF1521-60045	Polyetherimide (PEI)		1	Solder	Solder	2.92 mm	Female Socket Jack	500	Stainless Steel	Flexible	0.047 in	50 Ohms	Gold	Silver	40 GHz	Beryllium Copper					1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol SV Microwave SF1521-60061-1S	Polyetherimide (PEI)	Surface Mount	1	Screw	Compression	2.92 mm	Female Socket Jack	500	Stainless Steel			50 Ohms	Gold	Silver	40 GHz	Beryllium Copper		Mounting Hardware	-65 ░C	165 °C	1 Connector 2 Screws	Flange
Amphenol SV Microwave SF1521-60124-1S		Surface Mount	1	Screw	Compression	2.92 mm	Female Socket Jack	500	Stainless Steel			50 Ohms	Gold	Silver	40 GHz	Beryllium Copper		Mounting Hardware	-65 ░C	165 °C	1 Connector 2 Screws	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 79.47
		10	$ 61.74
		25	$ 56.12
		40	$ 53.51
		80	$ 49.97
Newark	Each	50	$ 51.58
		100	$ 50.82
		250	$ 50.07

Description

General part information

SF1521 Series

2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
