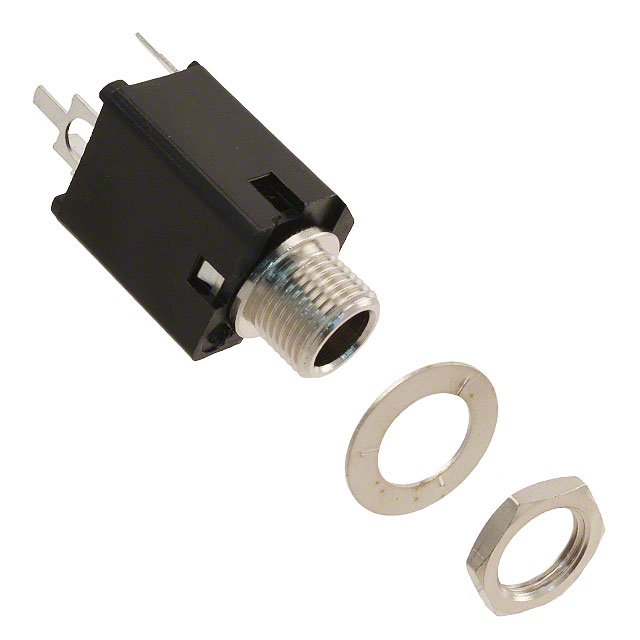

S112BPCX

Active

Switchcraft Inc.

CONN JACK STEREO 5.23MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 5.23MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	S112BPCX

Actual Diameter [diameter]	0.21 in
Actual Diameter [diameter]	5.33 mm
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Nickel
Features	Thread Lock, Mounting Hardware
Gender	Female
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	0.206 in
Industry Recognized Mating Diameter [diameter]	5.23 mm
Internal Switch(s)	False
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder

CONN JACK STEREO 5.23MM PNL MNT

Part	Includes	Connector Type	Features	Body Color	Gender	Body Material	Mounting Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Shielding	Contact Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]	Termination	Signal Lines	Internal Switch(s)
Switchcraft Inc. S112BPCX	Connector, Nut, Washer	Phone Jack	Mounting Hardware, Thread Lock	Black, Silver	Female	Copper Alloy	Panel Mount, Through Hole	0.206 in	5.23 mm	Unshielded	Copper Alloy	3	3	0.21 in	5.33 mm	Nickel	Solder	Stereo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5.23mm (0.206") Phone Jack Stereo (3 Conductor, TRS) Connector Solder

Technical documentation and resources

No documents available
