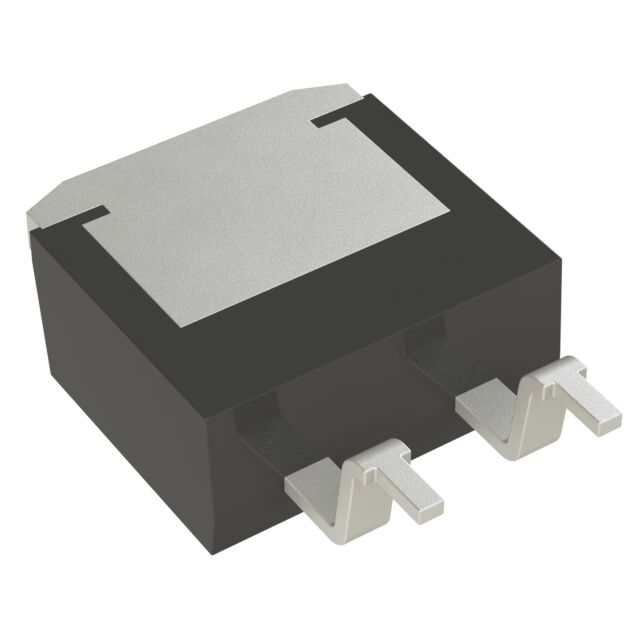

C6D20065G-TR

Active

Wolfspeed

DIODE SIL CARB 650V 64A TO2632

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SIL CARB 650V 64A TO2632

Technical Specifications

Parameters and characteristics for this part

Specification	C6D20065G-TR

Current - Average Rectified (Io)	64 A
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-263-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.27 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Supplier Device Package	Package / Case	Technology	Mounting Type	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr
Wolfspeed C6D20065G-TR	1.27 V	175 ░C	-55 C	No Recovery Time	TO-263-2	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	SiC (Silicon Carbide) Schottky	Surface Mount	64 A	0 ns	650 V
Wolfspeed C6D20065A	1.5 V	175 ░C	-55 C	No Recovery Time	TO-220-2	TO-220-2	SiC (Silicon Carbide) Schottky	Through Hole	66 A	0 ns	650 V	1153 pF	80 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 64A Surface Mount TO-263-2
