HDB36-18-14SN-059
ActiveTE Connectivity Raychem Cable Protection

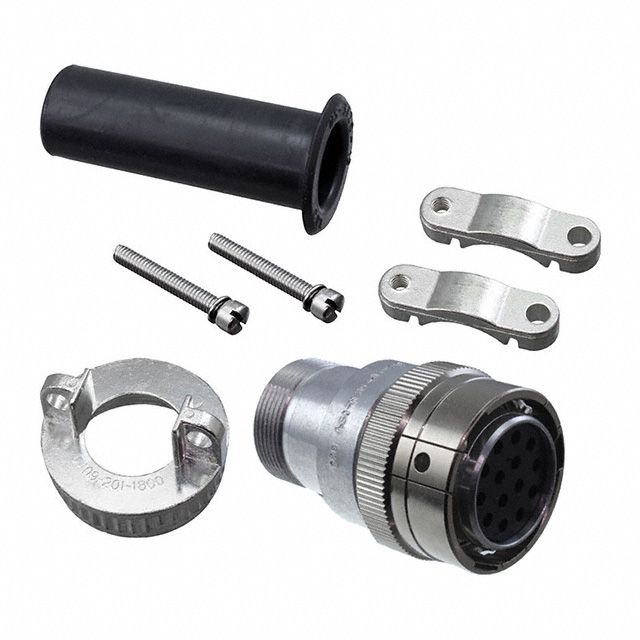

CONN PLUG HSG FMALE 14POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDB36-18-14SN-059
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG FMALE 14POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDB36-18-14SN-059 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Material | Aluminum |
| Shell Size - Insert | 18-14 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.73 | |
| 10 | $ 45.64 | |||
| 25 | $ 43.88 | |||
| 50 | $ 42.42 | |||
| 100 | $ 40.08 | |||
| 250 | $ 38.91 | |||
Description
General part information
HDB36 Series
14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp
