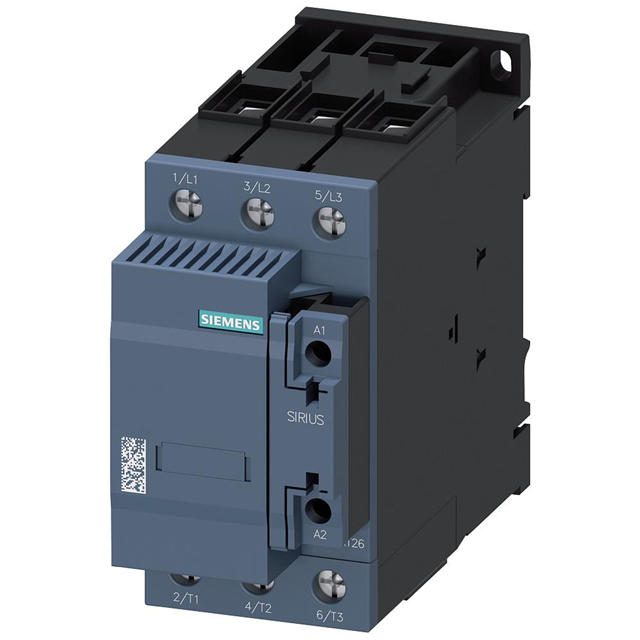

3RT26361NP35

Active

Siemens

CAP CONTACTOR 50KVAR 2NC 175-280

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Fail Safe Brochure SIRIUS Contactor Selection Guide.pdy +2

3RT26361NP35

Active

Siemens

CAP CONTACTOR 50KVAR 2NC 175-280

Deep-Dive with AI

DocumentsSIRIUS Contactor Fail Safe Brochure SIRIUS Contactor Selection Guide.pdy +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT26361NP35

Coil Power	110 VA
Coil Voltage [Max]	280 VAC/DC
Coil Voltage [Min]	175 VAC/DC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	72.2 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	100 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	55 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

3RT2636 Series

Part	Release Time	Coil Power	Mounting Type	Switching Voltage	Termination Style	Contact Rating (Current)	Features	Operate Time	Must Operate Voltage	Contact Form	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage [Min]	Coil Voltage [Max]
Siemens 3RT26361AB03	18 ms	190 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	19.2 VAC	3PST-NO (3 Form A)	24 VAC	-25 °C	60 °C
Siemens 3RT26361AP03	18 ms	190 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	184 VAC	3PST-NO (3 Form A)	230 VAC	-25 °C	60 °C
Siemens 3RT26361AF03	18 ms	190 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	88 VAC/DC	3PST-NO (3 Form A)	110 VAC/DC	-25 °C	60 °C
Siemens 3RT26361AF05	18 ms	190 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	88 VAC/DC	3PST-NO (3 Form A)	110 VAC/DC	-25 °C	60 °C
Siemens 3RT26361AL23	18 ms	210 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	195.5 VAC	3PST-NO (3 Form A)	230 VAC	-25 °C	60 °C
Siemens 3RT26361AB05	18 ms	190 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	19.2 VAC	3PST-NO (3 Form A)	24 VAC	-25 °C	60 °C
Siemens 3RT26361NF35	55 ms	110 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	100 ms		3PST-NO (3 Form A)		-25 °C	60 °C
Siemens 3RT26361AK65	18 ms	190 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	80 ms	96 VAC	3PST-NO (3 Form A)	120 VAC	-25 °C	60 °C
Siemens 3RT26361NP35	55 ms	110 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	100 ms		3PST-NO (3 Form A)		-25 °C	60 °C	175 VAC/DC	280 VAC/DC
Siemens 3RT26361NB35	55 ms	110 VA	Chassis Mount DIN Rail	690 VAC	Screw Terminal	72.2 A	Auxiliary Contacts	100 ms		3PST-NO (3 Form A)		-25 °C	60 °C	20 VAC/DC	33 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 616.66

3RT26361NP35

Deep-Dive with AI

3RT26361NP35

Deep-Dive with AI

Technical Specifications

3RT2636 Series

Pricing

Description

3RT2636 Series

Documents

SIRIUS Contactor Fail Safe Brochure

SIRIUS Contactor Selection Guide.pdy

SIRIUS Contactor Simply Switch Safely WhitePaper

Datasheet

3RT2636 Series
