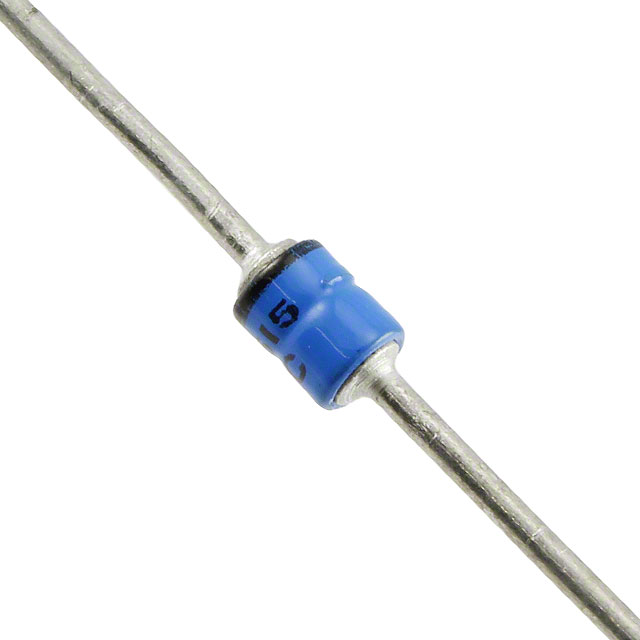

UM9604
ActiveMicrochip Technology
900-MHZ-PIN-ANTENNA-SWITCH-DIODE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM9604
ActiveMicrochip Technology
900-MHZ-PIN-ANTENNA-SWITCH-DIODE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UM9604 | UM9600-PIN-Antenna-Switch-Diode Series |
|---|---|---|
| Current - Max [Max] | 100 mA | 100 mA |
| Diode Type | PIN - Single | PIN - Single |
| Operating Temperature [Max] | 175 ░C | 175 - 347 ░C |
| Operating Temperature [Min] | -65 °C | -65 °C |
| Package / Case | Axial | Axial, 2-SMD |
| Power Dissipation (Max) | 1.5 W | 1.5 W |
| Resistance @ If, F | 600 mOhm | 600 mOhm |
| Supplier Device Package | Axial | Axial |
| Voltage - Peak Reverse (Max) [Max] | 400 V | 100 - 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | N/A | 1 | $ 16.61 | |
| 50 | $ 15.93 | |||
| 100 | $ 14.98 | |||
| 250 | $ 14.31 | |||
| 500 | $ 13.77 | |||
| 1000 | $ 13.50 | |||
UM9600-PIN-Antenna-Switch-Diode Series
900-MHz-PIN-Antenna-Switch-Diode
| Part | Supplier Device Package | Current - Max [Max] | Voltage - Peak Reverse (Max) [Max] | Diode Type | Operating Temperature [Max] | Operating Temperature [Min] | Resistance @ If, F | Power Dissipation (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UM9604 | Axial | 100 mA | 400 V | PIN - Single | 175 ░C | -65 °C | 600 mOhm | 1.5 W | Axial |
Microchip Technology UM9601 | 100 V | PIN - Single | 347 °F | -65 ░C | 600 mOhm | 2-SMD |
Description
General part information
UM9600-PIN-Antenna-Switch-Diode Series
These series of PIN diodes were developed for shunt mount applications in microstrip circuits. Good switch performance is demonstrated at frequencies from UHF to 4 GHz and higher.
