FL-B101Q-ACA

Active

Texmate

0-5 AMP AC BARGRAPH CONTROLLER /

Search across all available documentation for this part.

Active

Texmate

0-5 AMP AC BARGRAPH CONTROLLER /

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 722.00

General part information

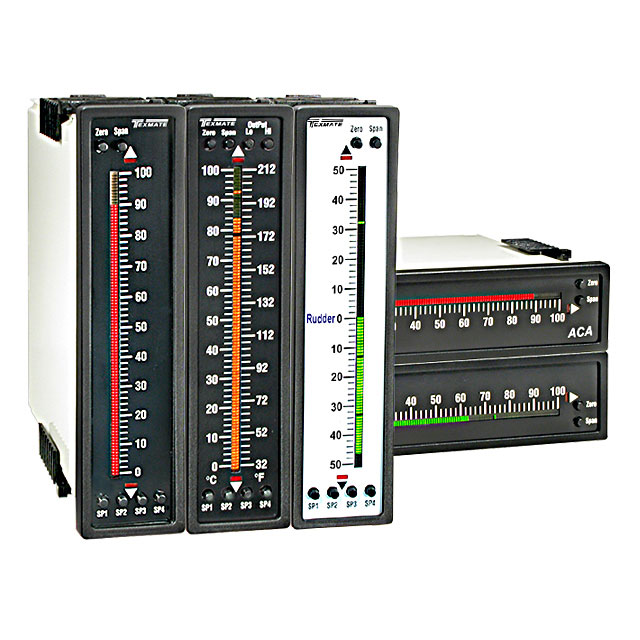

Ammeter LED - Red Bar Graph Display Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FL-B101Q-ACA	FL-B101Q Series

Display Type	LED - Red Bar Graph	LED - Red Bar Graph
Measuring Range [Max]	5 A	0.2 - 600 VDC
Measuring Range [Min]	0 A	0 - 200 VDC
Measuring Type	Current	Frequency, Current, Voltage, Process
Output Type	Relay (2), Analog	Relay (2), Analog
Panel Cutout Dimensions [x]	144.53 mm	144.53 mm
Panel Cutout Dimensions [y]	36.07 mm	36.07 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Ammeter	Frequency Meter, Ammeter, Voltmeter, Process Meter
Voltage - Supply [Max]	265 VAC, 300 VDC	265 - 300 VAC
Voltage - Supply [Min]	95 VDC, 85 VAC	85 - 95 VDC

LINE FREQUENCY 0-99.9 HZ BARGRAP

Part	Type	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Termination Style	Measuring Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Range [Min]	Measuring Range [Max]
Texmate FL-B101Q-HZ	Frequency Meter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Frequency	36.07 mm	144.53 mm
Texmate FL-B101Q-DCA	Ammeter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Current	36.07 mm	144.53 mm	0.02 VDC	0.2 VDC
Texmate FL-B101Q-ACV	Voltmeter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Voltage	36.07 mm	144.53 mm	200 VAC	600 VAC
Texmate FL-B101Q-ACA	Ammeter	Analog, Relay (2)	85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Current	36.07 mm	144.53 mm	0 A	5 A
Texmate FL-B101Q-DCV	Process Meter		85 VAC, 95 VDC	265 VAC, 300 VDC	LED - Red Bar Graph	Screw Terminal	Process	36.07 mm	144.53 mm	2 VDC	200 V
