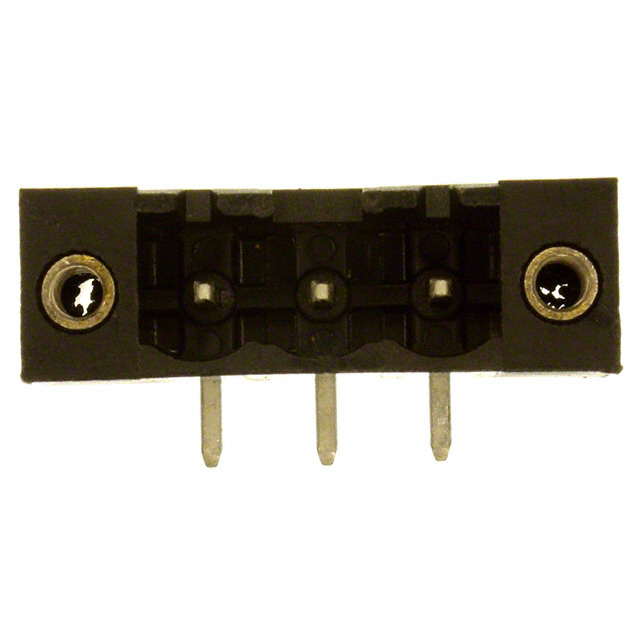

ELFH03210E

Active

AMPHENOL PCD

TERM BLOCK HDR 3POS 90DEG 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELFH03210E

Active

AMPHENOL PCD

TERM BLOCK HDR 3POS 90DEG 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH03210E

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

ELFH032 Series

Part	Insulation Height	Insulation Height [z]	Number of Levels	Mounting Type	Type	Material Flammability Rating	Color	Pitch [x]	Pitch [x]	Housing Material	Contact Mating Finish	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination Style	Voltage - UL	Contact Tail Length	Contact Tail Length	Positions Per Level	Insulation Height	Features
AMPHENOL PCD ELFH03290	12.07 mm	0.475 in	1	Through Hole	Header Male Pins Shrouded (2 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polyamide (PA46) Nylon 4/6	Tin	Vertical	-40 °C	105 ░C	Brass	Solder	300 V	3.94 mm	0.155 in	3
AMPHENOL PCD ELFH03220	8.1 mm		1	Through Hole	Header Male Pins Shrouded (2 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Tin	90° Right Angle	-40 °C	105 ░C	Brass	Solder	300 V	3.94 mm	0.155 in	3	0.319 in
AMPHENOL PCD ELFH0322G
AMPHENOL PCD ELFH03250E	8.1 mm		1	Through Hole	Header Male Pins Shrouded (4 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Tin	Vertical	-40 °C	105 ░C	Brass	Solder	300 V			3	0.319 in	Mating Flange
AMPHENOL PCD ELFH0326G
AMPHENOL PCD ELFH03260	12.07 mm	0.475 in	1	Through Hole	Header Male Pins Shrouded (2 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Tin	Vertical	-40 °C	105 ░C	Brass	Solder	300 V	3.94 mm	0.155 in	3
AMPHENOL PCD ELFH0325G
AMPHENOL PCD ELFH03240	8.1 mm		1	Through Hole	Header Male Pins Shrouded (2 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polyamide (PA46) Nylon 4/6	Tin	90° Right Angle	-40 °C	105 ░C	Brass	Solder	300 V	3.94 mm	0.155 in	3	0.319 in
AMPHENOL PCD ELFH03210	8.1 mm		1	Through Hole	Header Male Pins Shrouded (4 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Tin	90° Right Angle	-40 °C	105 ░C	Brass	Solder	300 V			3	0.319 in
AMPHENOL PCD ELFH03210E	8.1 mm		1	Through Hole	Header Male Pins Shrouded (4 Side)	UL94 V-0	Black	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Tin	90° Right Angle	-40 °C	105 ░C	Brass	Solder	300 V	3.94 mm	0.155 in	3	0.319 in	Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.23
		10	$ 1.69
		25	$ 1.57
		50	$ 1.41
		100	$ 1.37
		250	$ 1.20
		500	$ 1.10
		1000	$ 1.00
		5000	$ 0.88

Description

General part information

ELFH032 Series

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
