MAXM15068EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVKIT FOR MAXM15068
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM15068EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVKIT FOR MAXM15068
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM15068EVKIT# | MAXM15068 Series |
|---|---|---|
| - | - | |
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 200 mA | 200 mA |
| Current - Output (Max) | - | 200 mA |
| Features | - | Adjustable Output |
| Frequency - Switching | 550 kHz | 550 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Power (Watts) | - | 2.4 W |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 1.5 mm |
| Size / Dimension | - | 0.1 in |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 2.6 mm |
| Size / Dimension | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 3 |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM15068 | MAXM15068 |
| Voltage - Input (Max) | - | 60 V |
| Voltage - Input (Min) | - | 7.5 V |
| Voltage - Input [Max] | 60 V | 60 V |
| Voltage - Input [Min] | 15.5 V | 15.5 V |
| Voltage - Output | 12 V | 12 V |
| Voltage - Output 1 | - | 12 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.56 | |
MAXM15068 Series
STEP-DOWN TYPE ADJUSTABLE 7.5V~60V 5V~12V 200MA EMGA-10(3X2.6) DC-DC CONVERTERS ROHS
| Part | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Mounting Type | Package / Case | Type | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Power (Watts) | Features | Voltage - Input (Min) [Min] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Number of Outputs | Applications | Utilized IC / Part | Board Type | Supplied Contents | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Frequency - Switching | Outputs and Type | Outputs and Type | Regulator Topology | Voltage - Output | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM15068AMB+T | 10-eMGA | 2.6 | 3 | Surface Mount | 10-SMD Module | ||||||||||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15068AMB+T | |||||||||||||||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15068AMB+ | 10-eMGA | 2.6 | 3 | Surface Mount | 10-SMD Module | Non-Isolated PoL Module | 200 mA | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 125 °C | -40 °C | 60 V | 2.4 W | Adjustable Output | 7.5 V | 12 V | 5 V | 1 | ITE (Commercial) | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15068EVKIT# | MAXM15068 | Fully Populated | Board(s) | 200 mA | 15.5 V | 60 V | 550 kHz | Non-Isolated | 1 | Buck | 12 V | DC/DC, Step Down |
Description
General part information
MAXM15068 Series

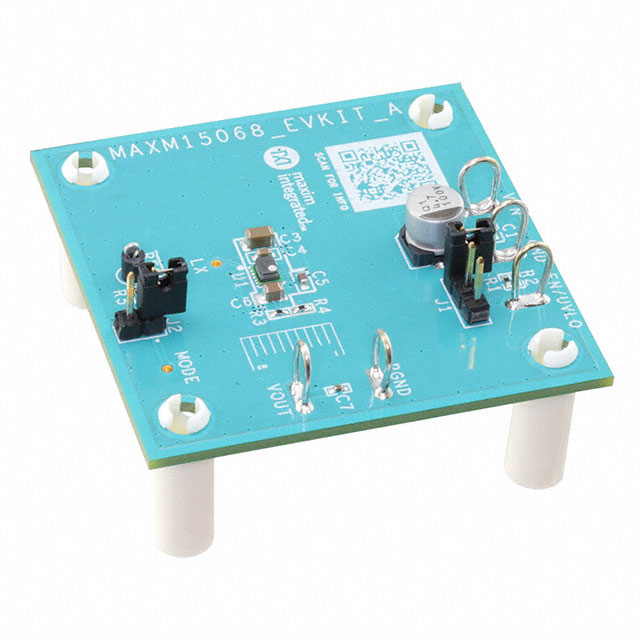

MAXM15068 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
