PEN.0F.302.XLM

Active

LEMO

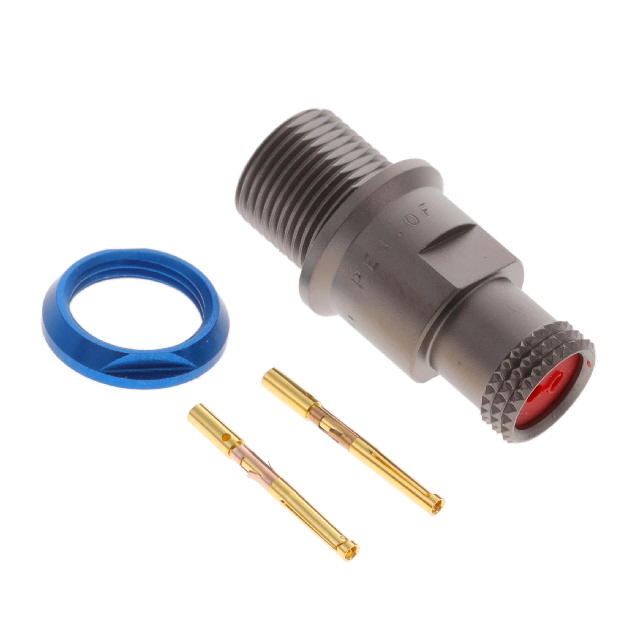

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PEN.0F.302.XLM	PEN.0F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	0.354 in	0.354 in
Cable Opening [custom]	9 mm	9 mm
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	10 A	6.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	2	2 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	302	302 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

Standard Circular Connector 4P STR RCPT CRIMP NUT FIXING

Part	Applications	Shell Size - Insert	Orientation	Shell Material	Shell Finish	Insert Material	Color	Current Rating (Amps)	Primary Material	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Termination	Shielding	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Contact Finish - Mating
LEMO PEN.0F.304.XLM	Aerospace	304	N	Aluminum Alloy	Nickel	Polyetheretherketone (PEEK)	Gray	7 A	Metal	Receptacle, Female Sockets	0.354 in	9 mm	IP67 - Dust Tight, Waterproof	Crimp	Shielded	Bulkhead - Front Side Nut	59 Áin	1.5 Ám	Bronze	UL94 V-0	200 °C	-15 °C	4	Push-Pull	Gold
LEMO PEN.0F.305.XLM	Aerospace	305	N	Aluminum Alloy	Nickel	Polyetheretherketone (PEEK)	Gray	6.5 A	Metal	Receptacle, Female Sockets	0.354 in	9 mm	IP67 - Dust Tight, Waterproof	Crimp	Shielded	Bulkhead - Front Side Nut	59 Áin	1.5 Ám	Bronze	UL94 V-0	200 °C	-15 °C		Push-Pull	Gold
LEMO PEN.0F.303.XLM	Aerospace	303	N	Aluminum Alloy	Nickel	Polyetheretherketone (PEEK)	Gray	8 A	Metal	Receptacle, Female Sockets	0.354 in	9 mm	IP67 - Dust Tight, Waterproof	Crimp	Shielded	Bulkhead - Front Side Nut	59 Áin	1.5 Ám	Bronze	UL94 V-0	200 °C	-15 °C		Push-Pull	Gold
LEMO PEN.0F.302.XLM	Aerospace	302	N	Aluminum Alloy	Nickel	Polyetheretherketone (PEEK)	Gray	10 A	Metal	Receptacle, Female Sockets	0.354 in	9 mm	IP67 - Dust Tight, Waterproof	Crimp	Shielded	Bulkhead - Front Side Nut	59 Áin	1.5 Ám	Bronze	UL94 V-0	200 °C	-15 °C	2	Push-Pull	Gold
