969587-2
ActiveTE Connectivity AMP Connectors

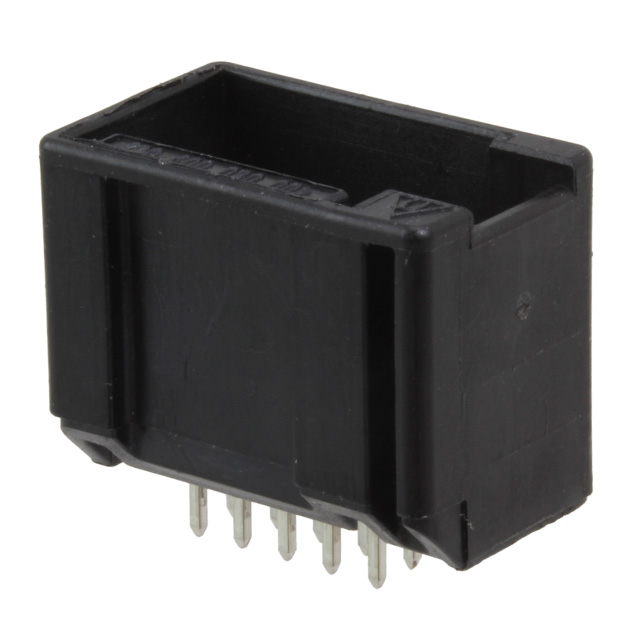

CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969587-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 969587-2 | 969587 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Mating | 6.8 mm | 6.8 mm |
| Contact Length - Mating | 0.268 in | 0.268 in |
| Contact Length - Post [x] | 0.134 in | 0.067 - 0.134 in |
| Contact Length - Post [x] | 3.4 mm | 1.7 - 3.4 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 0.65 in | 0.65 in |
| Insulation Height | 16.5 mm | 16.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 10 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.73 | |
| 10 | $ 2.44 | |||
| 172 | $ 2.20 | |||
| 516 | $ 1.99 | |||
| 1032 | $ 1.78 | |||
| 5160 | $ 1.57 | |||
969587 Series
CONN HEADER VERT 10POS 2.54MM
| Part | Insulation Material | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Style | Mounting Type | Contact Length - Mating | Contact Length - Mating | Number of Positions | Connector Type | Number of Rows | Contact Material | Number of Positions Loaded | Contact Shape | Insulation Height | Insulation Height | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Contact Type | Fastening Type | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969587-2 | Polybutylene Terephthalate (PBT), Glass Filled | Tin | 0.134 in | 3.4 mm | Black | Board to Board, Cable | Through Hole | 6.8 mm | 0.268 in | 10 | Header | 2 | Copper Alloy | All | Square | 0.65 in | 16.5 mm | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Solder | Male Pin | Locking Ramp | 0.1 in | 2.54 mm |
TE Connectivity AMP Connectors 969587-1 | Polybutylene Terephthalate (PBT), Glass Filled | Tin | 0.067 in | 1.7 mm | Black | Board to Board, Cable | Through Hole | 6.8 mm | 0.268 in | 10 | Header | 2 | Copper Alloy | All | Square | 0.65 in | 16.5 mm | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Solder | Male Pin | Locking Ramp | 0.1 in | 2.54 mm |
Description
General part information
969587 Series
Connector Header Through Hole 10 position 0.100" (2.54mm)
