45104-000000

Active

3M (TC)

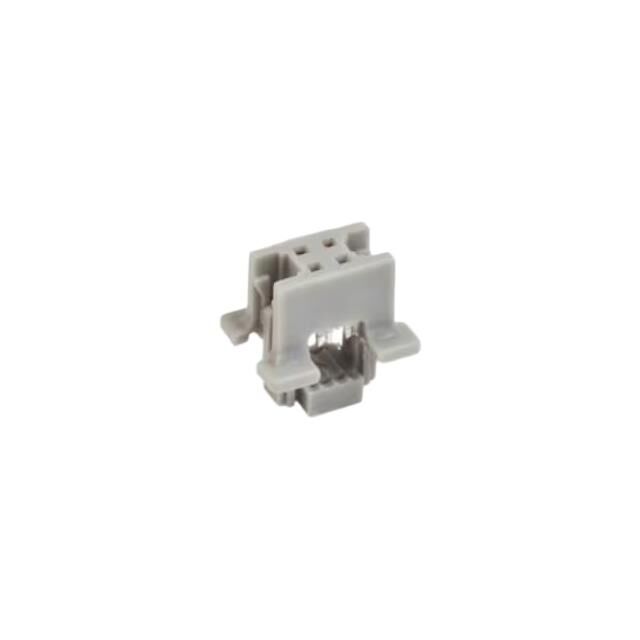

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 4 CONTACTS, CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 4 CONTACTS, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Mounting Type	Number of Positions	Row Spacing	Row Spacing	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Connector Type	Contact Type	Pitch [x]	Pitch [x]	Wire Gauge	Number of Rows	Contact Finish Thickness
3M (TC) 45104-000030	Ribbon Cable	Free Hanging (In-Line)	4	1.27 mm	0.05 in	IDC	0.76 Ám	30 Áin	Feed Through	Gold	Receptacle	Female Socket	0.05 in	1.27 mm	30 AWG	2
3M (TC) 45104-000000	Ribbon Cable	Free Hanging (In-Line)	4	1.27 mm	0.05 in	IDC			Feed Through	Gold	Receptacle	Female Socket	0.05 in	1.27 mm	30 AWG	2	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Rectangular Receptacle Connector IDC Gold 30 AWG
