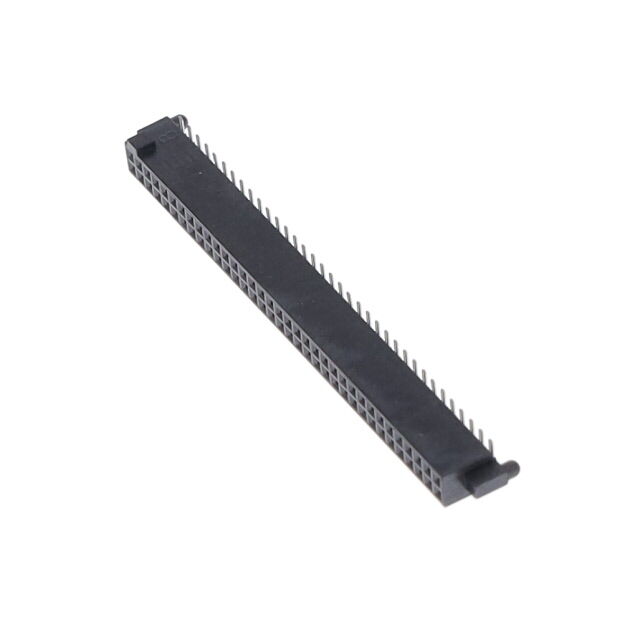

SFC-135-T2-F-D-A-K-TR
ActiveSamtec Inc.
CONN RCPT 70POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
SFC-135-T2-F-D-A-K-TR
ActiveSamtec Inc.
CONN RCPT 70POS 0.05 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFC-135-T2-F-D-A-K-TR |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.1 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Guide |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 350 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.85 | |
| 10 | $ 7.26 | |||
| 25 | $ 6.86 | |||
| 50 | $ 6.61 | |||
| 100 | $ 5.07 | |||
| Digi-Reel® | 1 | $ 7.85 | ||
| 10 | $ 7.26 | |||
| 25 | $ 6.86 | |||
| 50 | $ 6.61 | |||
| 100 | $ 5.07 | |||
| Tape & Reel (TR) | 550 | $ 4.56 | ||
| 1100 | $ 3.54 | |||
| 2750 | $ 3.08 | |||
Description
General part information
SFC-135 Series
70 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
