C14611R0066061
ActiveAmphenol Tuchel Industrial

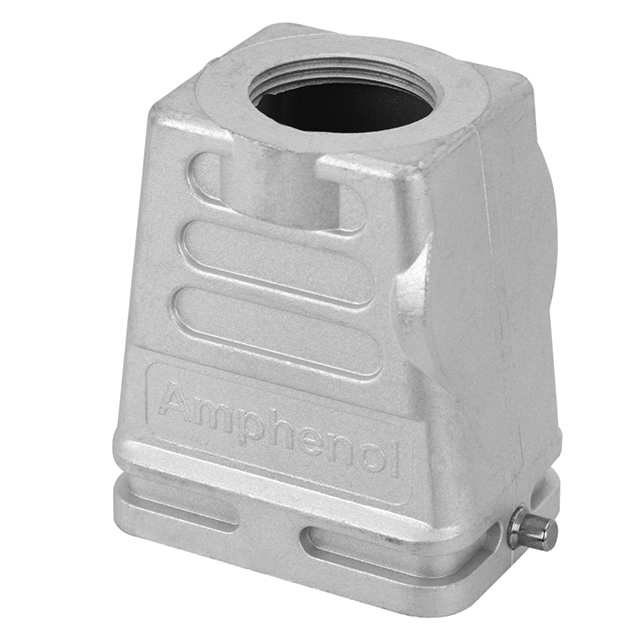

CONN HOOD TOP ENTRY SZE6 M20
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C14611R0066061
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE6 M20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C14611R0066061 |
|---|---|
| Connector Type | Hood |
| Housing Finish | EMC Coating |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 51 mm |
| Size / Dimension [z] | 2.008 in |
| Style | Top Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 15.79 | |
Description
General part information
C14611R006 Series
Hood Connector Top Entry M20 E6 IP65 - Dust Tight, Water Resistant
