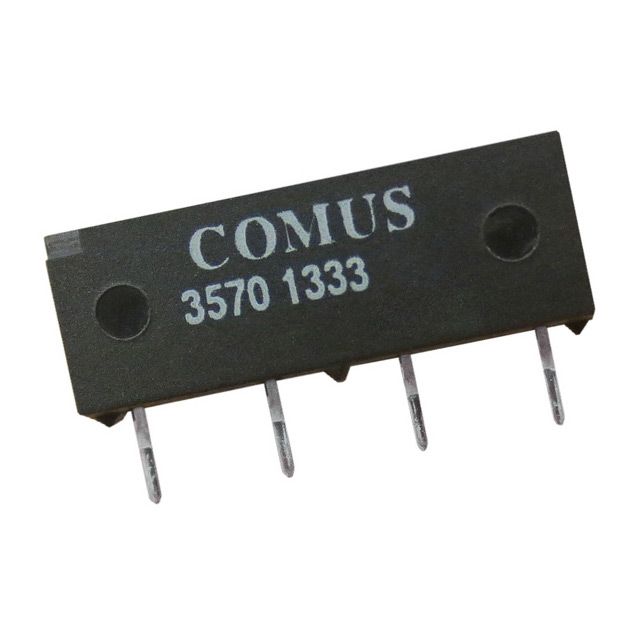

3570-1333-121

Active

Comus International

RELAY REED SIP SPST .5A 12V

Search across all available documentation for this part.

Active

Comus International

RELAY REED SIP SPST .5A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY REED SIP SPST .5A 12V

Part	Release Time	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Contact Form	Termination Style	Must Release Voltage	Coil Voltage	Coil Current	Mounting Type	Coil Resistance	Operate Time	Contact Rating (Current)	Must Operate Voltage
Comus International 3570-1333-121	0.1 ms	Non Latching	85 °C	-40 °C	200 VDC	SPST-NO (1 Form A)	PC Pin	1 VDC	12 VDC	12 mA	Through Hole	1 kOhms	0.35 ms	0.5 A	9 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 1.67

General part information

RELAY REED SIP SPST .5A 12V

Technical documentation and resources
