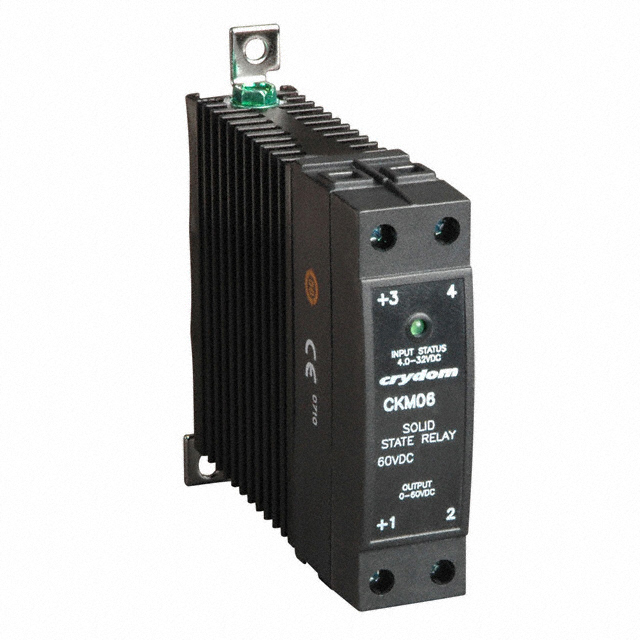

CKM0620

Active

Sensata-Crydom

SSR RELAY SPST-NO 20A 0-60V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 20A 0-60V

Technical Specifications

Parameters and characteristics for this part

Specification	CKM0620

Approval Agency	CE
Load Current	20 A
Mounting Type	DIN Rail
On-State Resistance (Max) [Max]	18 mOhms
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	DC
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	60 V
Voltage - Load [Min]	0 V

SSR RELAY SPST-NO 20A 0-60V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	On-State Resistance (Max) [Max]	Termination Style	Mounting Type	Output Type	Load Current	Approval Agency
Sensata-Crydom CKM0620	-40 °C	80 C	0 V	60 V	SSR with Integrated Heat Sink	32 V	4 V	18 mOhms	Screw Terminal	DIN Rail	DC	20 A	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
