928343-6

Active

TE Connectivity AMP Connectors

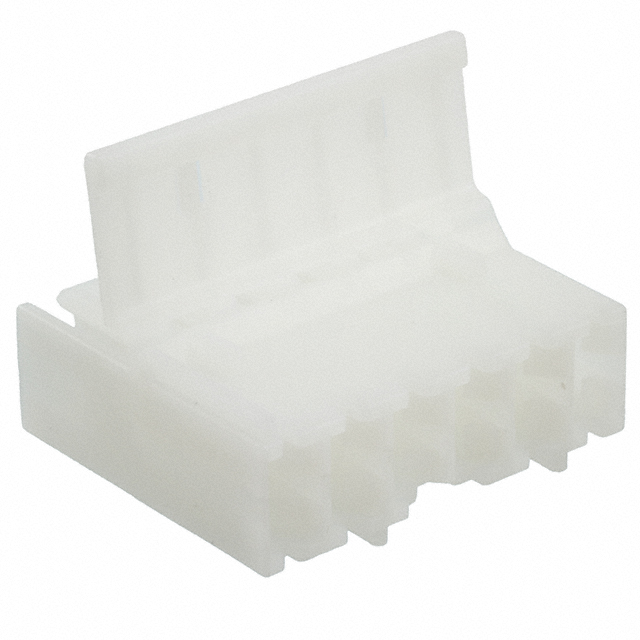

CONN RCPT HSG 6POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

928343-6

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 5.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.21
		10	$ 1.13
		100	$ 0.97
		1500	$ 0.77
		6000	$ 0.70
		10500	$ 0.65

Description

General part information

928343 Series

6 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	928343-6	928343 Series

Color	Natural	Gray, Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket, Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	2 - 12
Number of Rows	1	1
Operating Temperature [Max]	110 °C	105 - 110 ░C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

928343 Series

CONN RCPT HSG 3POS 5.00MM

Part	Mounting Type	Number of Rows	Color	Contact Termination	Note	Connector Type	Insulation Material	Pitch [x]	Pitch [x]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
TE Connectivity AMP Connectors 3-928343-3	Free Hanging (In-Line)	1	Gray	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	105 ░C	-55 °C
TE Connectivity AMP Connectors 2-928343-6	Free Hanging (In-Line)	1	Black	Crimp	Contacts Not Included		Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Male Pin			6
TE Connectivity AMP Connectors 2-928343-5	Free Hanging (In-Line)	1	Black	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket
TE Connectivity AMP Connectors 928343-6	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C	6
TE Connectivity AMP Connectors 2-928343-8	Free Hanging (In-Line)	1	Black	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket			8
TE Connectivity AMP Connectors 928343-2	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C	2
TE Connectivity AMP Connectors 1-928343-2	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	105 ░C	-55 °C	12
TE Connectivity AMP Connectors 1-928343-1	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	105 ░C	-55 °C	11
TE Connectivity AMP Connectors 928343-8	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C	8
TE Connectivity AMP Connectors 928343-5	Free Hanging (In-Line)	1	Natural	Crimp	Contacts Not Included	Receptacle	Polyamide (PA66), Nylon 6/6	5 mm	0.197 in	Female Socket	110 °C	-40 °C
