132135RP

Active

Amphenol RF

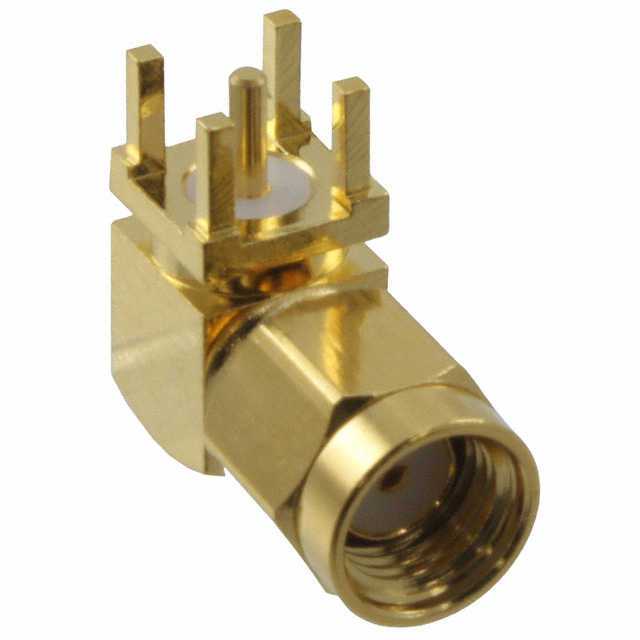

CONN RP-SMA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-SMA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	132135RP

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	375 V

Part	Mounting Type	Mating Cycles	Dielectric Material	Impedance	Frequency - Max [Max]	Body Material	Shield Termination	Number of Ports	Contact Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Center Contact Plating	Body Finish	Ingress Protection	Center Contact Material	Voltage Rating
Amphenol RF 132135RP	Through Hole Right Angle	500	Polytetrafluoroethylene (PTFE)	50 Ohms	18 GHz	Brass	Solder	1	Solder	Gold	-65 ░C	165 °C	RP-SMA	Female Socket Plug	Gold	Gold	Weatherproof	Brass	375 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Through Hole, Right Angle Solder
