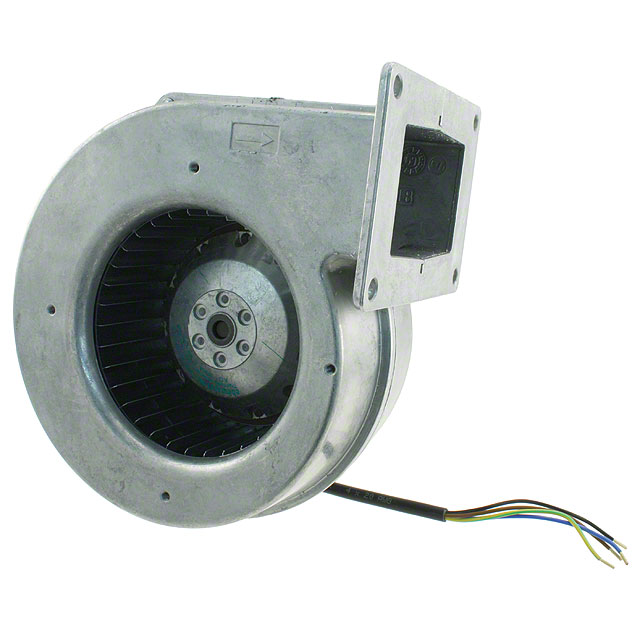

G2E120-CR21-01

Active

ebm-papst Inc.

AC BLOWER CENTRIFUGAL BALL BEARING 230V 161.86CFM 170.5 X 180 X 110MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog +1

G2E120-CR21-01

Active

ebm-papst Inc.

AC BLOWER CENTRIFUGAL BALL BEARING 230V 161.86CFM 170.5 X 180 X 110MM

Deep-Dive with AI

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G2E120-CR21-01

Air Flow	4.2 mł/min
Air Flow	150 CFM
Approval Agency	CE, CCC, GOST
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Material - Blade	Steel
Material - Frame	Aluminum
Noise	63 dB
Power (Watts)	100 W
RPM	2050 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171 mm
Size / Dimension [z]	180 mm
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	1.9 kg
Weight	4.2 lbs
Width [x]	110 mm

G2E120 Series

Part	Noise	Voltage - Rated	Weight	Weight	Fan Type	Width [y]	Bearing Type	Power (Watts)	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [diameter]	Termination	Material - Blade	Material - Frame	Features	Size / Dimension	Size / Dimension [z]	Current Rating (Amps)	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Ingress Protection	Approval Agency	Width [x]
ebm-papst Inc. G2E120-AR38-43	62 dB(A)	230 VAC	2 kg	4.5 lbs	Blower Centrifugal	115 mm	Ball	90 W	4.26 mł/min	152 CFM	174 mm	190 mm	120 mm	4 Wire Leads	Steel	Aluminum
ebm-papst Inc. G2E120-AR77-01		230 VAC			Blower Centrifugal	115 mm	Ball	100 W			178 mm			4 Wire Leads	Steel	Aluminum	Capacitor Thermal Overload Protector (TOP)	Rectangular/Rounded	193.5 mm	0.44 A	2450 RPM	55 °C	55 °C	-25 °C	-25 °C	IP44	CCC CE EAC
ebm-papst Inc. G2E120-AR38-01		230 VAC			Blower Centrifugal	115 mm	Ball	110 W			178 mm			4 Wire Leads with Splice Terminals	Steel	Aluminum	Capacitor Thermal Overload Protector (TOP)	Rectangular/Rounded	193.5 mm	0.5 A	2600 RPM	60 °C			-25 °C	IP44	CE
ebm-papst Inc. G2E120-CR21-01	63 dB	230 VAC	1.9 kg	4.2 lbs	Blower Centrifugal		Ball	100 W	4.2 mł/min	150 CFM	171 mm			2 Wire Leads	Steel	Aluminum		Rectangular/Rounded	180 mm		2050 RPM						CCC CE GOST	110 mm
ebm-papst Inc. G2E120-AR54-43	62 dB(A)	115 VAC	2 kg	4.5 lbs	Blower Centrifugal	115 mm	Ball	105 W	4.26 mł/min	152 CFM	174 mm	190 mm	120 mm	4 Wire Leads	Steel	Aluminum
ebm-papst Inc. G2E120-DO16-17		230 VAC			Blower Centrifugal	115 mm	Ball	115 W			178 mm			3 Wire Leads	Steel	Aluminum	Capacitor	Rectangular/Rounded	193.5 mm	0.51 A	2300 RPM	75 ░C	75 °C	-25 °C	-25 °C		CE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 280.36
		10	$ 249.93
		25	$ 238.75

Description

General part information

G2E120 Series

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 171mm L x 180mm H Ball 150.0 CFM (4.20m³/min) 2 Wire Leads
