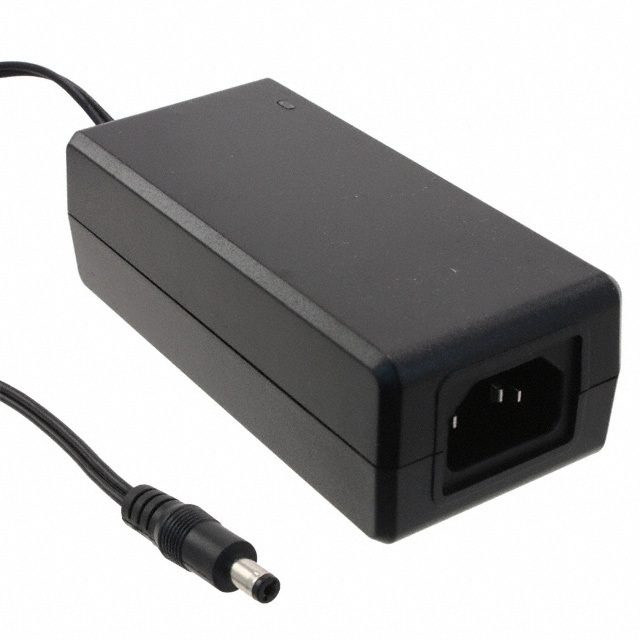

KTPS65-1934DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 19V 65W

Deep-Dive with AI

Search across all available documentation for this part.

KTPS65-1934DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 19V 65W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 23.12

Description

General part information

KTPS65 Series

19V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTPS65-1934DT-3P-VI-C-P1	KTPS65 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cUL, PSE, CE, GS, UL, CB	IEC, cUL, PSE, CE, GS, UL, CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	3.4 A	1.36 - 5 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	65 W	65 W
Region Utilized	International	International
Size / Dimension [x]	4.53 "	4.53 "
Size / Dimension [x]	115 mm	115 mm
Size / Dimension [y]	2.09 "	2.09 "
Size / Dimension [y]	53 mm	53 mm
Size / Dimension [z]	38 mm	38 mm
Size / Dimension [z]	1.5 "	1.5 "
Standard Number	-	60950-1
Voltage - Input [Max]	264 VAC	240 - 264 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output	19 V	12 - 48 VDC
Weight	310.26 g	310.26 g
Weight	0.684 lb	0.684 lb

KTPS65 Series

AC/DC DESKTOP ADAPTER 15V 65W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Polarization	Standard Number	Current - Output (Max) [Max]	Approval Agency	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Connector	Cord Length	Cord Length	Input Type	Form	Operating Temperature [Max]	Power (Watts)	Voltage - Output	Weight	Weight
Volgen + Furuno KTPS65-1543DT-3P-VI-C-P1	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	International	Positive Center	60950-1	4.3 A	IEC	ITE (Commercial)	240 VAC	100 VAC	Level VI	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1.5 m	59 in	Cord	Desktop (Class I)	40 °C	65 W	15 VDC
Volgen + Furuno KTPS65-4813DT-3P-VI-C-P1	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	International	Positive Center		1.36 A	CB, CE, cUL, GS, PSE, UL	ITE (Commercial)	264 VAC	100 VAC	Level VI	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1.5 m	59 in	Cord	Desktop (Class I)	40 °C	65 W	48 V	310.26 g	0.684 lb
Volgen + Furuno KTPS65-1934DT-3P-VI-C-P1	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	International	Positive Center		3.4 A	CB, CE, cUL, GS, PSE, UL	ITE (Commercial)	264 VAC	100 VAC	Level VI	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1.5 m	59 in	Cord	Desktop (Class I)	40 °C	65 W	19 V	310.26 g	0.684 lb
Volgen + Furuno KTPS65-1250DT-3P-VI-C-P1	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	International	Positive Center	60950-1	5 A	IEC	ITE (Commercial)	240 VAC	100 VAC	Level VI	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1.5 m	59 in	Cord	Desktop (Class I)	40 °C	65 W	12 V
