425.1-10-120-SW

Active

J.W. Winco

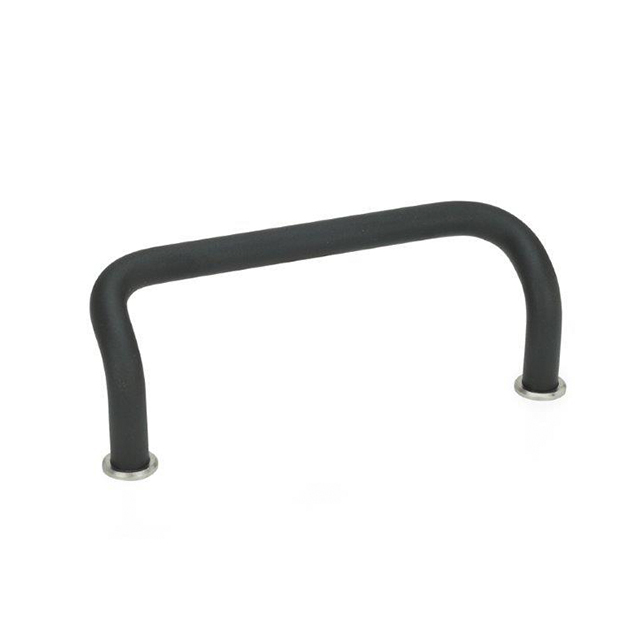

HANDLE STEEL MTG CTR 4.72"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE STEEL MTG CTR 4.72"

Technical Specifications

Parameters and characteristics for this part

Specification	425.1-10-120-SW

Height [z]	46.99 mm
Height [z]	1.85 in
Length - Center to Center [custom]	119.89 mm
Length - Center to Center [custom]	4.72 in
Mounting Type	Screw Holes, Back
Thread/Screw/Hole Size	M5
Type	Instrumentation

Part	Type	Material	Thread/Screw/Hole Size	Mounting Type	Length - Center to Center [custom]	Length - Center to Center [custom]	Height [z]	Height [z]	Length - Center to Center [x]	Length - Center to Center [x]
J.W. Winco 425.1-NI-10-120-GS	Instrumentation	Stainless Steel	M5	Screw Holes Back	119.89 mm	4.72 in	46.99 mm	1.85 in
J.W. Winco 425.1-10-120-CR	Instrumentation		M5	Screw Holes Back	119.89 mm	4.72 in	46.99 mm	1.85 in
J.W. Winco 425.1-10-88-CR	Instrumentation		M5	Screw Holes Back			46.99 mm	1.85 in	3.46 in	87.88 mm
J.W. Winco 425.1-NI-10-100-GS	Instrumentation	Stainless Steel	M5	Screw Holes Back			46.99 mm	1.85 in	3.94 in	100.08 mm
J.W. Winco 425.1-NI-10-88-GS	Instrumentation	Stainless Steel	M5	Screw Holes Back			46.99 mm	1.85 in	3.46 in	87.88 mm
J.W. Winco 425.1-10-120-SW	Instrumentation		M5	Screw Holes Back	119.89 mm	4.72 in	46.99 mm	1.85 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.09

General part information

Instrumentation Handle Steel Screw Holes, Back
