LDD-E302NI

Active

Lumex Opto/Components Inc.

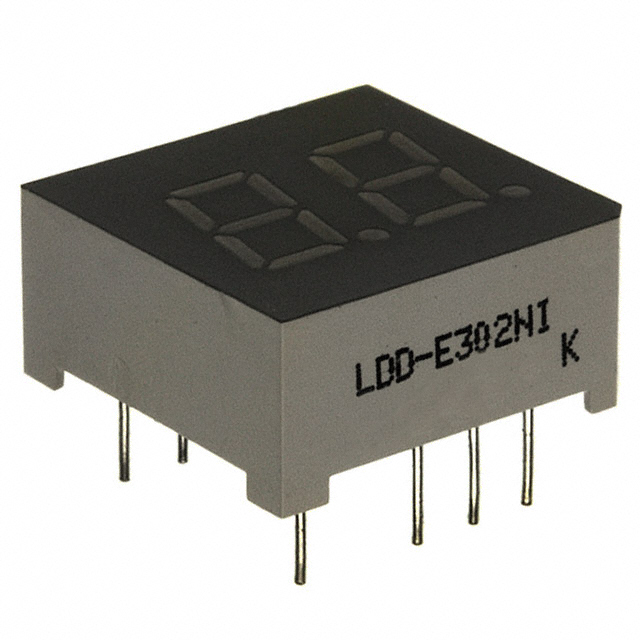

DISPLAY 7SEG 0.3" DBL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDD-E302NI

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.3" DBL GRN 10DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LDD-E302NI	LDD-E302 Series

Color	Green	Green
Common Pin	Common Anode	Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	0.3 in	0.3 in
Digit/Alpha Size	7.62 mm	7.62 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	2.5 mcd	2.5 mcd
Number of Characters	2	2
Package / Case	10.16 mm	10.16 mm
Package / Case	10-DIP	10-DIP, 9-SIP Right Angle
Package / Case	9, 10.16 mm	9 - 10.16
Power Dissipation (Max) [Max]	105 mW	105 mW
Size / Dimension [x]	7.2 mm	7.2 mm
Size / Dimension [x]	0.283 in	0.283 in
Size / Dimension [y]	15.5 mm	15.5 mm
Size / Dimension [y]	0.61 in	0.61 in
Size / Dimension [z]	15 mm	15 mm
Size / Dimension [z]	0.591 "	0.591 "
Voltage - Forward (Vf) (Typ)	2.2 V	2.2 V
Wavelength - Peak	565 nm	565 nm

LDD-E302 Series

DISPLAY 7SEG 0.3" DBL GRN 10DIP

Part	Color	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Display Type	Common Pin	Current - Test	Millicandela Rating	Number of Characters	Power Dissipation (Max) [Max]	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Lumex Opto/Components Inc. LDD-E302NI	Green	2.2 V	10.16 mm	10-DIP	9, 10.16 mm	7-Segment	Common Anode	10 mA	2.5 mcd	2	105 mW	565 nm	0.3 in	7.62 mm	15.5 mm	7.2 mm	15 mm	0.591 "	0.283 in	0.61 in
Lumex Opto/Components Inc. LDD-E302NI-RA	Green	2.2 V		9-SIP Right Angle		7-Segment	Common Anode	10 mA	2.5 mcd	2	105 mW	565 nm	0.3 in	7.62 mm	15.5 mm	7.2 mm	15 mm	0.591 "	0.283 in	0.61 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.33
		32	$ 1.27
		128	$ 1.07
		512	$ 0.94
		1024	$ 0.89
		2016	$ 0.85
		5024	$ 0.80
		10016	$ 0.78

Description

General part information

LDD-E302 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm), 9 Leads
