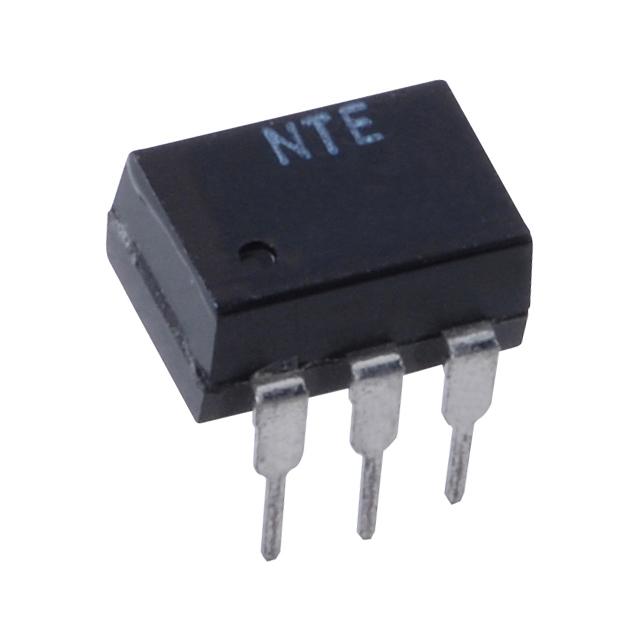

NTE3048

Active

NTE Electronics, Inc

OPTOISOLATOR/TRIAC

Search across all available documentation for this part.

Active

NTE Electronics, Inc

OPTOISOLATOR/TRIAC

Technical Specifications

Parameters and characteristics for this part

Specification	NTE3048

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Hold (Ih)	100 µA
Current - LED Trigger (Ift) (Max) [Max]	15 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	6-DIP
Package / Case	0.3 in
Package / Case	7.62 mm
Static dV/dt (Min) [Min]	10 V/µs
Supplier Device Package	6-DIP
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Isolation	7500 Vpk
Voltage - Off State	400 V
Zero Crossing Circuit	False

Part	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Current - Hold (Ih)	Output Type	Zero Crossing Circuit	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - LED Trigger (Ift) (Max) [Max]	Number of Channels	Package / Case	Package / Case	Package / Case	Mounting Type	Voltage - Off State	Voltage - Isolation	Static dV/dt (Min) [Min]
NTE Electronics, Inc NTE3046	1.25 V	60 mA	500 µA	SCR		6-DIP	100 °C	-30 ░C	14 mA	1	6-DIP	0.3 in	7.62 mm	Through Hole
NTE Electronics, Inc NTE3048	1.5 V	60 mA	100 µA	Triac		6-DIP	85 °C	-40 °C	15 mA	1	6-DIP	0.3 in	7.62 mm	Through Hole	400 V	7500 Vpk	10 V/µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Triac Output 7500Vpk 1 Channel 6-DIP
