LB25CKW01-5C-JC

Active

NKK Switches

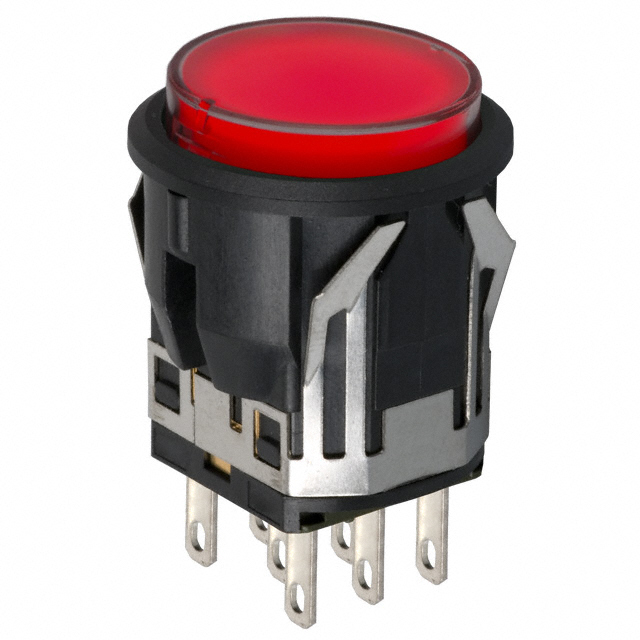

PUSHBUTTON SWITCH, LB SERIES, 22 MM, DPDT, ON-(ON), ROUND, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLB Snap-In PB Series Datasheet +1

LB25CKW01-5C-JC

Active

NKK Switches

PUSHBUTTON SWITCH, LB SERIES, 22 MM, DPDT, ON-(ON), ROUND, TRANSPARENT

Deep-Dive with AI

DocumentsLB Snap-In PB Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB25CKW01-5C-JC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.9 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB25CKW Series

Part	Panel Cutout Dimensions [diameter]	Electrical Life	Switch Function	Circuit	Type	Termination Style	Termination Style	Termination Style	Actuator Marking	Mechanical Life	Color - Actuator/Cap	Mounting Type	Illumination Type, Color	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Type	Illumination Voltage (Nominal)
NKK Switches LB25CKW01-1C-C	22 mm	100000 Cycles	On-Mom	DPDT	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Red	Panel Mount Snap-In	LED Red	125 V	30 V	50 °C	-25 °C	3 A	Button Round	1.9 VDC
NKK Switches LB25CKW01-F	22 mm	100000 Cycles	On-Mom	DPDT	Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Green	Panel Mount Snap-In		125 V	30 V	70 °C	-25 °C	3 A	Button Round
NKK Switches LB25CKW01-E	22 mm	100000 Cycles	On-Mom	DPDT	Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Yellow	Panel Mount Snap-In		125 V	30 V	70 °C	-25 °C	3 A	Button Round
NKK Switches LB25CKW01-5C-JC	22 mm	100000 Cycles	On-Mom	DPDT	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Clear (Red Filter/Diffuser)	Panel Mount Snap-In	LED Red	125 V	30 V	50 °C	-25 °C	3 A	Button Round	1.9 VDC
NKK Switches LB25CKW01-5D24-JD	22 mm	100000 Cycles	On-Mom	DPDT	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Clear	Panel Mount Snap-In	Amber LED	125 V	30 V	50 °C	-25 °C	3 A	Button Round	24 V
NKK Switches LB25CKW01-H	22 mm	100000 Cycles	On-Mom	DPDT	Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles		Panel Mount Snap-In		125 V	30 V	70 °C	-25 °C	3 A	Button Round
NKK Switches LB25CKW01-BJ	22 mm	100000 Cycles	On-Mom	DPDT	Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	White	Panel Mount Snap-In		125 V	30 V	70 °C	-25 °C	3 A	Button Round
NKK Switches LB25CKW01-CJ	22 mm	100000 Cycles	On-Mom	DPDT	Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Red	Panel Mount Snap-In		125 V	30 V	70 °C	-25 °C	3 A	Button Round
NKK Switches LB25CKW01/UC	22 mm	100000 Cycles	On-Mom	DPDT	Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles		Panel Mount Snap-In		125 V	30 V	70 °C	-25 °C	3 A	Plunger for Cap
NKK Switches LB25CKW01/C-01-JC	22 mm	100000 Cycles	On-Mom	DPDT	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	Clear (Red Filter/Diffuser)	Panel Mount Snap-In	Neon Red	125 V	30 V	50 °C	-25 °C	3 A	Button Round
