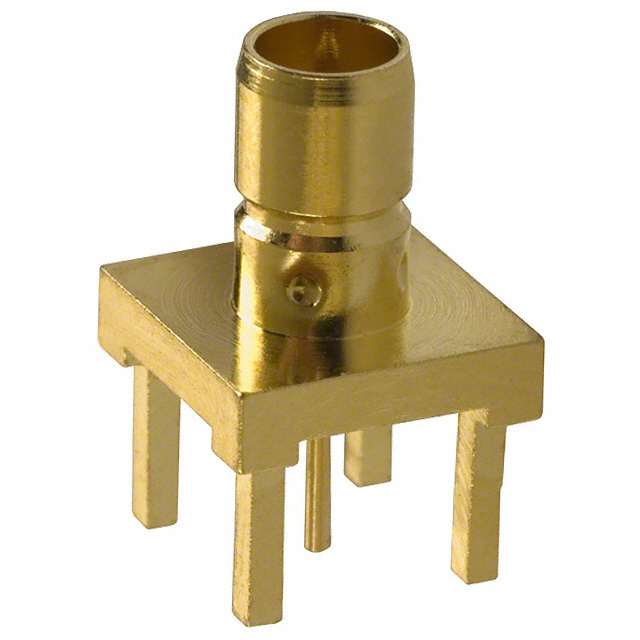

142138-75

Active

Amphenol RF

CONN MINI-SMB 75OHM SOLDER ST THRU-HOLE RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN MINI-SMB 75OHM SOLDER ST THRU-HOLE RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	142138-75

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Contact Termination	Dielectric Material	Shield Termination	Center Contact Plating	Number of Ports	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Fastening Type	Impedance	Housing Color	Mounting Type	Mating Cycles	Insertion Loss	Body Finish	Center Contact Material
Amphenol RF 142138-75	Solder	Polytetrafluoroethylene (PTFE)	Solder	Gold	1	Jack Male Pin	-65 ░C	165 °C	Brass	Snap-On	75 Ohms	Gold	Through Hole	500	0.3 dB	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Mini Connector Jack, Male Pin 75 Ohms Through Hole Solder

Technical documentation and resources

No documents available
