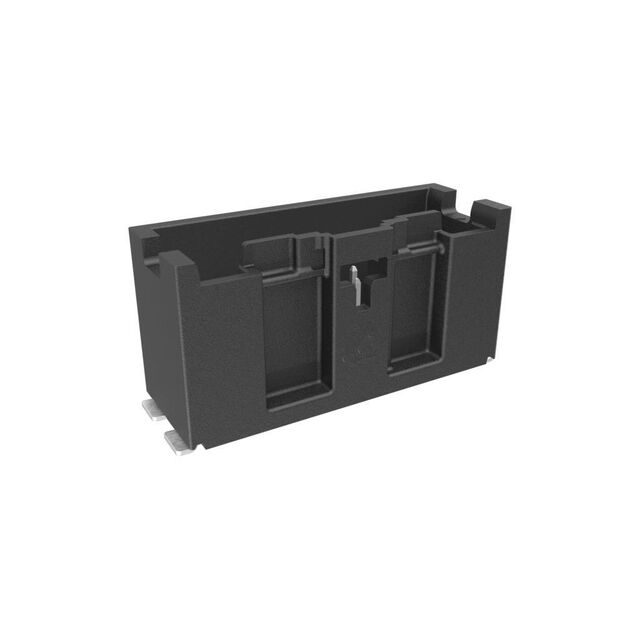

10143535-316KLF

Active

Amphenol ICC (FCI)

VERTICAL HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicroSpace™ Application Specification MicroSpace™ Product Presentation +1

10143535-316KLF

Active

Amphenol ICC (FCI)

VERTICAL HEADER

Deep-Dive with AI

DocumentsMicroSpace™ Application Specification MicroSpace™ Product Presentation +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10143535-316KLF

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4 A
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	13.35 mm
Insulation Height	0.526 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating	2.43 mm
Row Spacing - Mating	0.096 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	48 VDC

10143535 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Material Flammability Rating	Voltage Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Material	Shrouding	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Fastening Type	Insulation Material	Style	Insulation Height	Insulation Height	Contact Shape	Features	Contact Type	Applications	Mounting Type	Termination	Insulation Color	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 10143535-207KLF	-40 °C	130 °C	Tin	7	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2
Amphenol ICC (FCI) 10143535-111KLF	-40 °C	130 °C	Tin	11	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2
Amphenol ICC (FCI) 10143535-204KLF	-40 °C	130 °C	Tin	4	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2
Amphenol ICC (FCI) 10143535-308KLF	-40 °C	130 °C	Tin	8	UL94 V-0	48 VDC	Header	0.76 Ám		4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2	30 Áin	Gold
Amphenol ICC (FCI) 10143535-208KLF	-40 °C	130 °C	Tin	8	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2
Amphenol ICC (FCI) 10143535-115KLF	-40 °C	130 °C	Tin	15	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2
Amphenol ICC (FCI) 10143535-104KLF	-40 °C	130 °C	Tin	4	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2
Amphenol ICC (FCI) 10143535-316KLF	-40 °C	130 °C	Tin		UL94 V-0	48 VDC	Header	0.76 Ám		4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2	30 Áin	Gold	16
Amphenol ICC (FCI) 10143535-314KLF	-40 °C	130 °C	Tin	14	UL94 V-0	48 VDC	Header	0.76 Ám		4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2	30 Áin	Gold
Amphenol ICC (FCI) 10143535-212KLF	-40 °C	130 °C	Tin	12	UL94 V-0	48 VDC	Header	118.1 µin	3 µm	4 A	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	2.43 mm	0.096 in	All	Latch Holder	Thermoplastic	Board to Cable/Wire	13.35 mm	0.526 in	Square	Board Guide Solder Retention	Male Pin	Automotive General Purpose Industrial	Surface Mount	Solder	Black	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	750	$ 1.61
