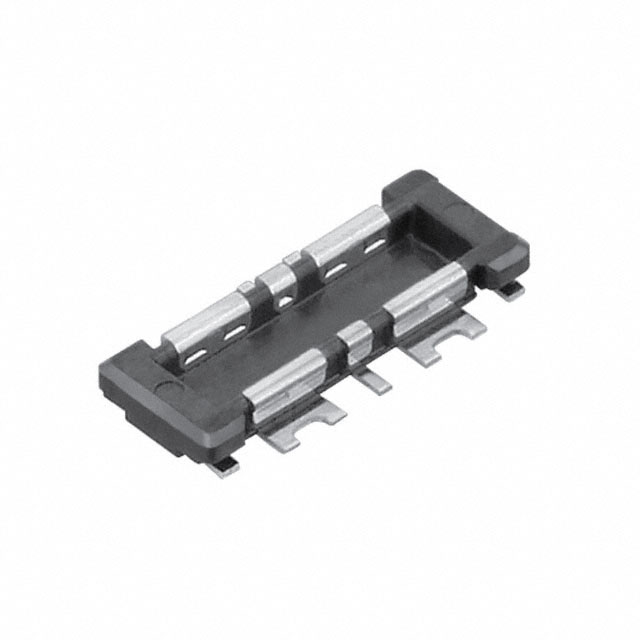

AXF461500A
ActivePanasonic Electric Works
CONN HDR 6POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXF461500A
ActivePanasonic Electric Works
CONN HDR 6POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXF461500A |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Rows | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 1.67 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.33 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 1.02 | |||
| 2500 | $ 0.96 | |||
Description
General part information
AXF461500 Series
6 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
