392-050-542-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
392-050-542-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-050-542-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
392-050 Series
...
| Part | Pitch [x] | Pitch [x] | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Color | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Type | Contact Finish | Number of Positions | Material - Insulation | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Feature | Number of Rows | Contact Type | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Single Edge | Gold | 50 | Polyester Thermoplastic | Through Hole Right Angle | -40 °C | 105 ░C | Solder Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | 1 | Cantilever | 50 | |||
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | Wire Wrap | Flush Mount Top Opening Unthreaded | 2 | Cantilever | 25 | 3.25 mm | 0.128 " | |
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | Wire Wrap | 2 | Cantilever | 25 | ||||
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Through Hole Right Angle | -40 °C | 105 ░C | Solder Wire Wrap | 2 | Cantilever | 25 | ||||
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Board Edge Straddle Mount | -40 °C | 105 ░C | Solder | Flush Mount Top Opening Unthreaded | 2 | Cantilever | 25 | 3.25 mm | 0.128 " | Card Extender |
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Board Edge Straddle Mount | -40 °C | 105 ░C | Solder | 2 | Cantilever | 25 | Card Extender | |||
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Through Hole Right Angle | -40 °C | 105 ░C | Solder Wire Wrap | Flush Mount Side Opening Unthreaded | 2 | Cantilever | 25 | 3.25 mm | 0.128 " | |
EDAC Inc. | 2.54 mm | 0.1 in | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Dual Edge | Gold | 50 | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | 2 | Cantilever | 25 | |||
EDAC Inc. | 2.54 mm | 0.1 in | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Single Edge | Gold | 50 | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | Solder | Flush Mount Side Opening Unthreaded | 1 | Cantilever | 50 | 3.25 mm | 0.128 " | |
EDAC Inc. | 2.54 mm | 0.1 in | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Black | Female | 10 Áin | 0.25 Ám | Copper Alloy | Non Specified - Single Edge | Gold | 50 | Polyester Thermoplastic | Through Hole | -40 °C | 105 ░C | Wire Wrap | Floating Bobbin Flush Mount | 1 | Cantilever | 50 | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-050 Series

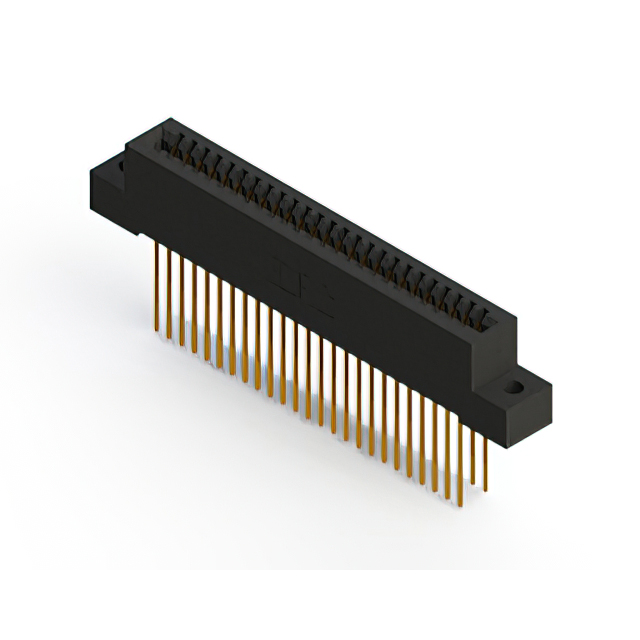

50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
