UPS840/TR13
ActiveMicrochip Technology

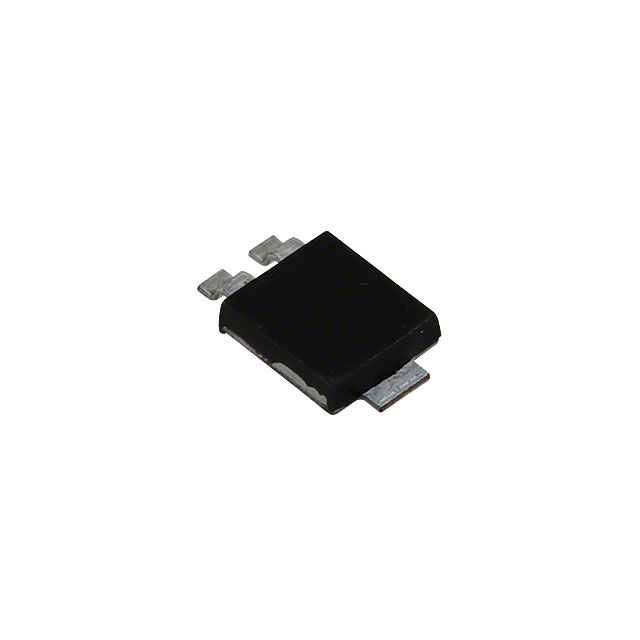

DIODE SCHOTTY 3-PIN(2+TAB) 8.0A, 40V, VF=0.42V POWERMITE3 T/R
Deep-Dive with AI
Search across all available documentation for this part.
UPS840/TR13
ActiveMicrochip Technology
DIODE SCHOTTY 3-PIN(2+TAB) 8.0A, 40V, VF=0.42V POWERMITE3 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPS840/TR13 | UPS840 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 8 A | 8 A |
| Current - Reverse Leakage @ Vr | 5 mA | 5 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | Powermite®3 | Powermite®3 |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | Powermite 3 | Powermite 3 |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV | 450 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.01 | |
| 100 | $ 2.79 | |||
| Digi-Reel® | 1 | $ 3.01 | ||
| 100 | $ 2.79 | |||
| Tape & Reel (TR) | 5000 | $ 2.79 | ||
| Microchip Direct | N/A | 1 | $ 3.01 | |
| 100 | $ 2.79 | |||
| 500 | $ 2.69 | |||
| 1000 | $ 2.54 | |||
UPS840 Series
Diode Schotty 3-Pin(2+Tab) 8.0A, 40V, VF=0.42V PowerMite3 T/R
| Part | Mounting Type | Current - Average Rectified (Io) | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Package / Case | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Speed | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS840E3/TR13 | |||||||||||
Microchip Technology UPS840E3/TR13 | |||||||||||
Microchip Technology UPS840/TR13 | Surface Mount | 8 A | -55 °C | 125 °C | Powermite®3 | Schottky | 40 V | 5 mA | 450 mV | 200 mA, 500 ns | Powermite 3 |
Description
General part information
UPS840 Series
Plastic package High current capability with low forward voltage drop.
