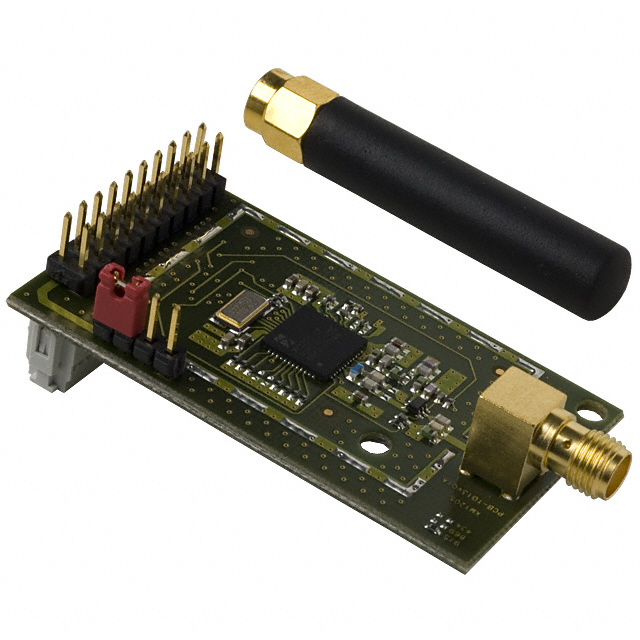

XM1203FC433XE1

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZRPSMA

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZRPSMA

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD ISM<1GHZRPSMA

Part	Frequency	Current - Receiving	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	RF Family/Standard	Serial Interfaces	Antenna Type	Current - Transmitting	Modulation	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate
Semtech Corporation XM1203FC433XE1	433 MHz	14 mA	-114 dBm	2.4 V	3.6 V	15 dBm	General ISM < 1GHz	SPI	Antenna Not Included, RP-SMA	65 mA	FSK	XE1203F	85 °C	-40 °C	152.3 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 433MHz Antenna Not Included, RP-SMA

Technical documentation and resources

No documents available
