S301F/CUL

Active

NKK Switches

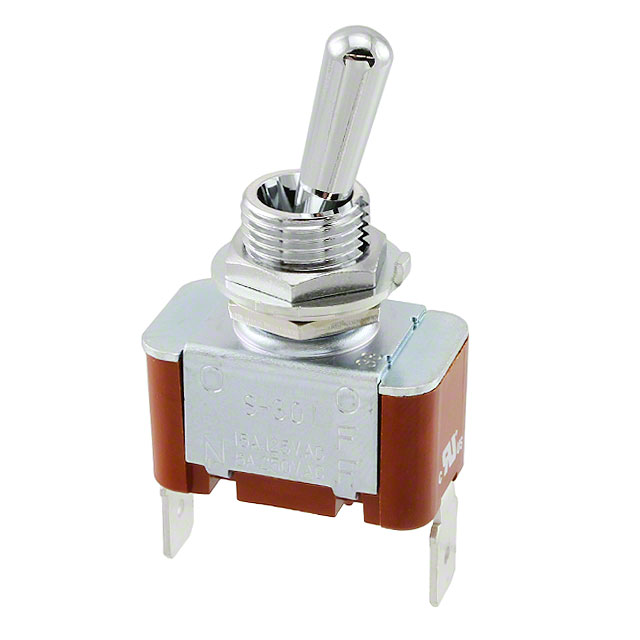

TOGGLE SWITCH, ON-OFF, SPST, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ON-OFF, SPST, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	S301F/CUL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A, 15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Length [x]	Electrical Life	Bushing Thread	Bushing Thread	Panel Cutout Dimensions [diameter]	Circuit	Switch Function	Actuator Material	Illumination	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style
NKK Switches S301F/CUL-AT401S	17.5 mm	25000 Steps	M12	1 x 1	12.5 mm	SPST	On-Off	Brass Chrome Plated	Non-Illuminated	125 V	Standard Round	30 V	15 A 20 A	-10 °C	158 °F
NKK Switches S301F/U	17.5 mm	25000 Steps	M12	1 x 1	12.5 mm	SPST	On-Off	Brass Chrome Plated	Non-Illuminated	125 V	Standard Round	30 V	15 A 20 A	-10 °C	158 °F	Quick Connect - 0.250" (6.3mm)
NKK Switches S301F/UC-AT401A	17.5 mm	25000 Steps	M12	1 x 1	12.5 mm	SPST	On-Off	Brass Chrome Plated	Non-Illuminated	125 V	Standard Round	30 V	15 A 20 A	-10 °C	158 °F
NKK Switches S301F/CUL	17.5 mm	25000 Steps	M12	1 x 1	12.5 mm	SPST	On-Off	Brass Chrome Plated	Non-Illuminated	125 V	Standard Round	30 V	15 A 20 A	-10 °C	158 °F	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
