Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PKG.M0.4SL.NG | PKG.M0 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Color | Gray | Black, Gray, Red, White, Blue, Yellow, Green |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 8 A | 3 - 10 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 4 | 2 - 9 |
| Operating Temperature [Max] | 170 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | G | G |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyetherimide (PEI) | Polyetherimide (PEI), Polysulfone (PSU) |
| Shell Size - Insert | M04 | M04, M06, M02, M08, M05, M09 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder, Crimp |
PKG.M0 Series
CONN RCPT FMALE 4P GOLD SLDR CUP
...
| Part | Fastening Type | Mounting Feature | Applications | Connector Type | Contact Finish - Mating | Shell Material | Number of Positions | Color | Orientation | Shielding | Primary Material | Shell Size - Insert | Insert Material | Ingress Protection | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PKG.M0.4TL.LZ | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 4 | Black | G | Unshielded | Plastic | M04 | Polyetheretherketone (PEEK) | IP50 | 8 A | -50 °C | 170 °C | ||
LEMO PKG.M0.6TL.LN | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 6 | Black | G | Unshielded | Plastic | M06 | Polyetheretherketone (PEEK) | IP50 | 6 A | -50 °C | 170 °C | ||
LEMO PKG.M0.6SL.LG | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 6 | Gray | G | Unshielded | Plastic | M06 | Polyetheretherketone (PEEK) | IP50 | 6 A | -50 °C | 170 °C | ||
LEMO PKG.M0.7SL.NG | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 7 | Gray | G | Unshielded | Plastic | Polyetheretherketone (PEEK) | IP50 | 5 A | -50 °C | 170 °C | Panel Mount, Through Hole | Solder | |
LEMO PKG.M0.2SL.NR | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 2 | Gray, Red | G | Unshielded | Plastic | M02 | Polyetheretherketone (PEEK) | IP50 | 10 A | -50 °C | 170 °C | Panel Mount, Through Hole | Solder |
LEMO PKG.M0.8SL.LG | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 8 | Gray | G | Unshielded | Plastic | M08 | Polyetheretherketone (PEEK) | IP50 | 5 A | -50 °C | 170 °C | ||
LEMO PKG.M0.4GL.LB | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polysulfone (PSU) | 4 | Gray, White | G | Unshielded | Plastic | M04 | Polyetheretherketone (PEEK) | IP50 | 8 A | -50 °C | 150 °C | ||
LEMO PKG.M0.8SL.MG | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 8 | Gray | G | Unshielded | Plastic | M08 | Polyetheretherketone (PEEK) | IP50 | 5 A | -50 °C | 170 °C | Crimp | |
LEMO PKG.M0.6SL.NZ | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 6 | Gray | G | Unshielded | Plastic | M06 | Polyetheretherketone (PEEK) | IP50 | 6 A | -50 °C | 170 °C | Panel Mount, Through Hole | Solder |
LEMO PKG.M0.7SL.NZ | Detent Lock, Push-Pull | Front and Rear Side Nut | Automotive, Industrial, Medical, Testing Equipment & Measurement | Receptacle, Female Sockets | Gold | Polyetherimide (PEI) | 7 | Gray | G | Unshielded | Plastic | Polyetheretherketone (PEEK) | IP50 | 5 A | -50 °C | 170 °C | Panel Mount, Through Hole | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PKG.M0 Series

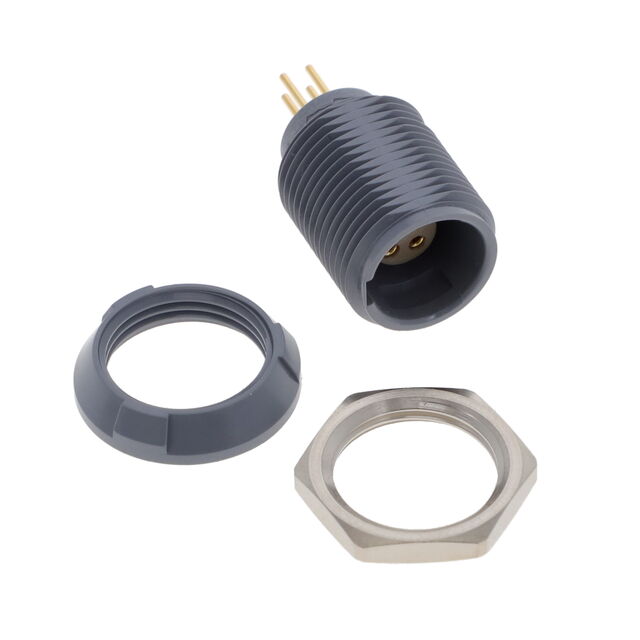

4 Position Circular Connector Receptacle, Female Sockets Solder
