PKG.M0.6SL.LG

Active

LEMO

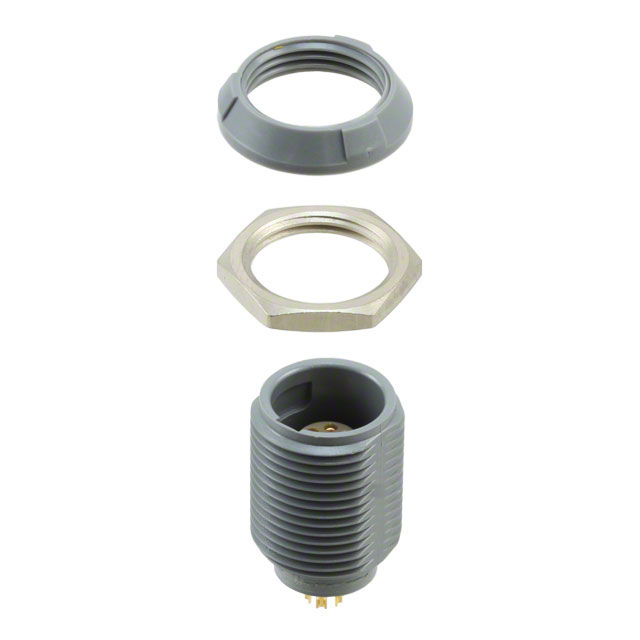

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet P Series Catalog

PKG.M0.6SL.LG

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet P Series Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.38
		10	$ 21.35
		25	$ 20.43
		50	$ 19.77
		100	$ 19.11
		250	$ 18.06
		500	$ 17.53

Description

General part information

PKG.M0 Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

P Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKG.M0.6SL.LG	PKG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Black, Gray, Red, White, Blue, Yellow, Green
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	6 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	6	2 - 9
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polyetherimide (PEI), Polysulfone (PSU)
Shell Size - Insert	M06	M04, M06, M02, M08, M05, M09
Shielding	Unshielded	Unshielded
Termination	-	Solder, Crimp

PKG.M0 Series

CONN RCPT FMALE 4P GOLD SLDR CUP

...

Part	Fastening Type	Mounting Feature	Applications	Connector Type	Contact Finish - Mating	Shell Material	Number of Positions	Color	Orientation	Shielding	Primary Material	Shell Size - Insert	Insert Material	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination
LEMO PKG.M0.4TL.LZ	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	4	Black	G	Unshielded	Plastic	M04	Polyetheretherketone (PEEK)	IP50	8 A	-50 °C	170 °C
LEMO PKG.M0.6TL.LN	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	6	Black	G	Unshielded	Plastic	M06	Polyetheretherketone (PEEK)	IP50	6 A	-50 °C	170 °C
LEMO PKG.M0.6SL.LG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	6	Gray	G	Unshielded	Plastic	M06	Polyetheretherketone (PEEK)	IP50	6 A	-50 °C	170 °C
LEMO PKG.M0.7SL.NG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	7	Gray	G	Unshielded	Plastic		Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M0.2SL.NR	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	2	Gray, Red	G	Unshielded	Plastic	M02	Polyetheretherketone (PEEK)	IP50	10 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M0.8SL.LG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	8	Gray	G	Unshielded	Plastic	M08	Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C
LEMO PKG.M0.4GL.LB	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polysulfone (PSU)	4	Gray, White	G	Unshielded	Plastic	M04	Polyetheretherketone (PEEK)	IP50	8 A	-50 °C	150 °C
LEMO PKG.M0.8SL.MG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	8	Gray	G	Unshielded	Plastic	M08	Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C		Crimp
LEMO PKG.M0.6SL.NZ	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	6	Gray	G	Unshielded	Plastic	M06	Polyetheretherketone (PEEK)	IP50	6 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M0.7SL.NZ	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	7	Gray	G	Unshielded	Plastic		Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
