M8,BK

Active

Serpac

BOX ABS BLACK 6.97"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.97"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	M8,BK

Area (L x W)	108 cm²
Area (L x W)	16.7 in²
Color	Black
Container Type	Box
Features	Battery Compartment, 9V and AA
Height [z]	0.85 in
Height [z]	21.59 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	6.97 in
Size / Dimension [x]	177.04 mm
Size / Dimension [y]	60.96 mm
Size / Dimension [y]	2.4 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	77.11 g
Weight	0.17 lb

Part	Height [z]	Height [z]	Weight	Weight	Color	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Material	Features	Ratings	Container Type	Area (L x W)	Area (L x W)
Serpac M8,GY	0.85 in	21.59 mm	77.11 g	0.17 lb	Gray	2.54 mm	0.1 in	6.97 in	60.96 mm	177.04 mm	2.4 "	UL94 HB	Plastic ABS	9V and AA Battery Compartment	IP40	Box	16.7 in²	108 cm²
Serpac M8,BK	0.85 in	21.59 mm	77.11 g	0.17 lb	Black	2.54 mm	0.1 in	6.97 in	60.96 mm	177.04 mm	2.4 "	UL94 HB	Plastic ABS	9V and AA Battery Compartment	IP40	Box	16.7 in²	108 cm²
Serpac M8,AL	0.85 in	21.59 mm	77.11 g	0.17 lb	Almond	2.54 mm	0.1 in	6.97 in	60.96 mm	177.04 mm	2.4 "	UL94 HB	Plastic ABS	9V and AA Battery Compartment	IP40	Box	16.7 in²	108 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

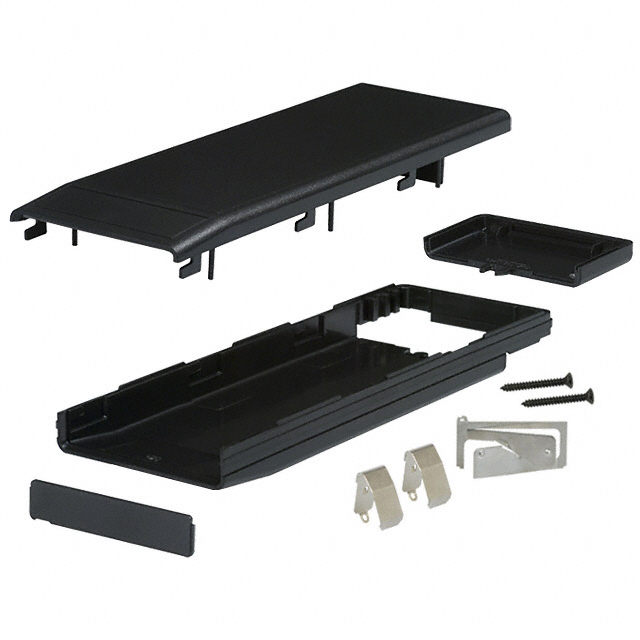

Box Plastic, ABS Black Hand Held, Split Sides and End Panel(s) 6.970" L x 2.400" W (177.04mm x 60.96mm) X 0.850" (21.59mm)
