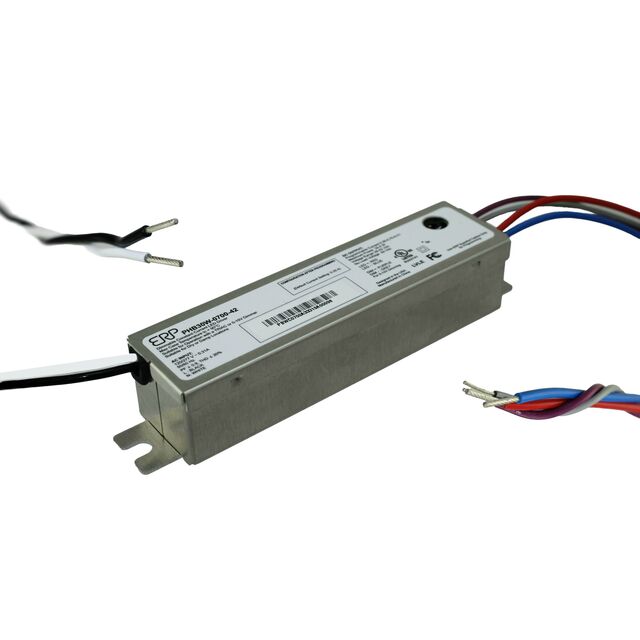

PHB30W-0700-42

Active

ERP Power, LLC

PROGRAMMABLE CC LED DRIVER

Search across all available documentation for this part.

Active

ERP Power, LLC

PROGRAMMABLE CC LED DRIVER

Technical Specifications

Parameters and characteristics commom to parts in this series

PROGRAMMABLE CC LED DRIVER

Part	Mounting Type	Dimming	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Ratings	Termination Style	Number of Outputs	Efficiency	Topology	Operating Temperature	Type	Power (Watts)	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output (Max) [Max]
ERP Power, LLC PHB30W-0500-42	Chassis Mount	Analog, ELV, TRIAC	cULus, FCC	120 VAC	277 VAC	103.4 mm	1.03 in	23.9 mm	26.2 mm	0.94 in	4.07 in	IP20	Wire Leads	1	90 %	AC DC Converter	194 °F	Constant Current	21 W	28 V	42 V	500 mA
ERP Power, LLC PHB30W-0700-42	Chassis Mount	Analog, ELV, TRIAC	cULus, FCC	120 VAC	277 VAC	103.4 mm	1.03 in	23.9 mm	26.2 mm	0.94 in	4.07 in	IP20	Wire Leads	1	90 %	AC DC Converter	194 °F	Constant Current	29 W	28 V	42 V	700 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

700mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
