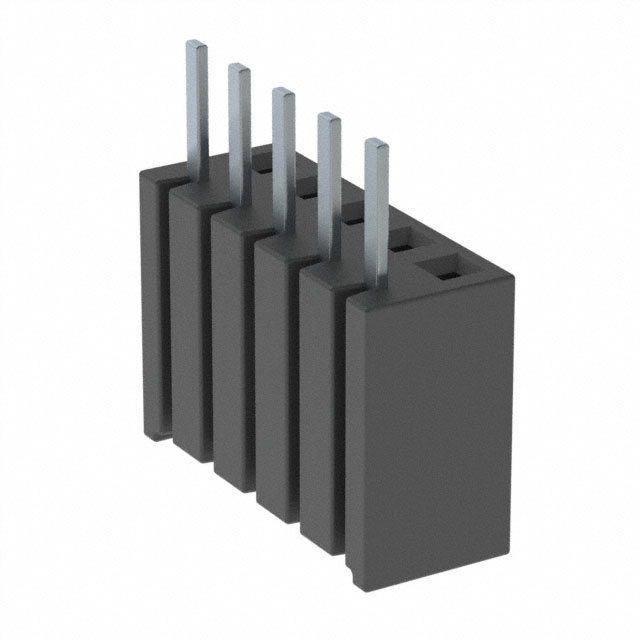

BSW-105-04-T-S

Active

Samtec Inc.

CONN RCPT 5POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BSW Datasheet +1

BSW-105-04-T-S

Active

Samtec Inc.

CONN RCPT 5POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet BSW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-105-04-T-S

Connector Type	Breakaway, Receptacle
Contact Finish - Post	Tin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-105 Series

Part	Contact Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Fastening Type	Number of Rows	Insulation Color	Mounting Type	Contact Shape	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-105-04-T-D	Female Socket	Breakaway Receptacle	105 ░C	-55 °C	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder	2.54 mm	0.1 in	All	Push-Pull	2	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm	10
Samtec Inc. BSW-105-24-S-D	Female Socket	Breakaway Receptacle	125 °C	-55 °C	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder	2.54 mm	0.1 in	All	Push-Pull	2	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm	10	30 Áin	0.76 Ám	Gold
Samtec Inc. BSW-105-04-L-S	Female Socket	Breakaway Receptacle	125 °C	-55 °C	Phosphor Bronze			Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder			All	Push-Pull	1	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm		10 çin	0.25 çm	Gold	4.32 mm	0.17 in
Samtec Inc. BSW-105-04-G-D	Female Socket	Breakaway Receptacle	125 °C	-55 °C	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder	2.54 mm	0.1 in	All	Push-Pull	2	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm	10	20 µin	0.51 µm	Gold
Samtec Inc. BSW-105-04-S-S-S	Female Socket	Receptacle	125 °C	-55 °C	Phosphor Bronze	0.15 in	3.81 mm	Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder			All	Push-Pull	1	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm		30 Áin	0.76 Ám	Gold
Samtec Inc. BSW-105-04-T-S	Female Socket	Breakaway Receptacle	105 ░C	-55 °C	Phosphor Bronze			Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder			All	Push-Pull	1	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm					4.32 mm	0.17 in
Samtec Inc. BSW-105-04-G-S	Female Socket	Receptacle	125 °C	-55 °C	Phosphor Bronze			Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder			All	Push-Pull	1	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm		20 µin	0.51 µm	Gold	4.32 mm	0.17 in
Samtec Inc. BSW-105-24-G-D	Female Socket	Breakaway Receptacle	125 °C	-55 °C	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Solder	2.54 mm	0.1 in	All	Push-Pull	2	Black	Bottom Mount Through Hole	Square	UL94 V-0	0.35 in	8.89 mm	10	20 µin	0.51 µm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.00

Description

General part information

BSW-105 Series

5 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Bottom Mount Tin
