50007M12BSSW

Active

Jacob GmbH

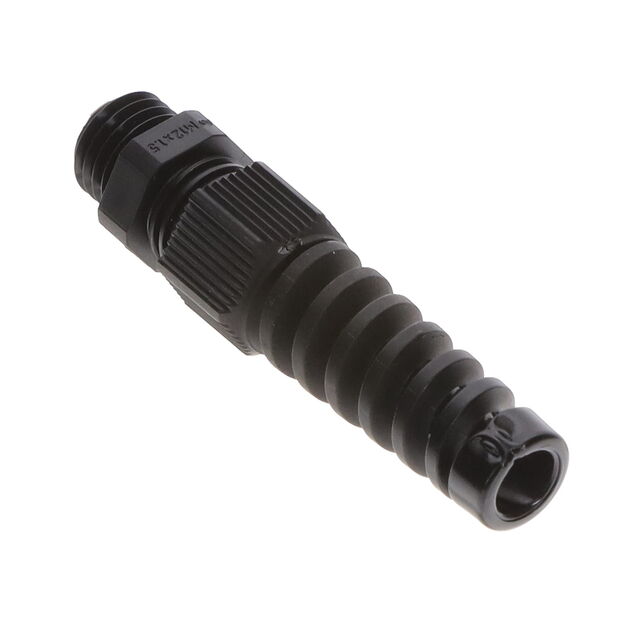

CABLE GLAND 3-6.5MM M12 POLYAMID

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 3-6.5MM M12 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	50007M12BSSW

Color	Black
Includes	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M12x1.5
Type	Cable Gland

Part	Includes	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Ingress Protection	Thread Length	Thread Length
Jacob GmbH 50007M12BS7035	Strain Relief	M12x1.5	3 mm	0.118 in	Cable Gland	100 °C	-40 °C	0.256 "	6.5 mm	Gray	IP68 - Dust Tight Waterproof	8 mm	0.315 in
Jacob GmbH 50007M12BSSW	Strain Relief	M12x1.5	3 mm	0.118 in	Cable Gland	100 °C	-40 °C	0.256 "	6.5 mm	Black	IP68 - Dust Tight Waterproof	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M12x1.5 Black
