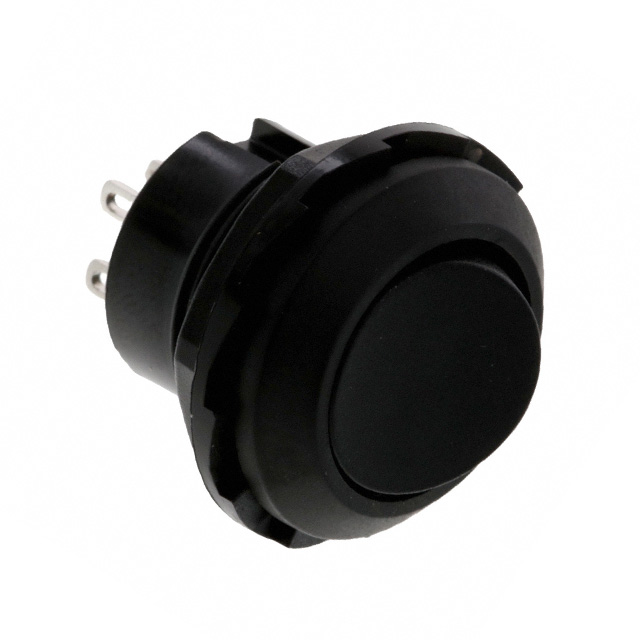

RR3130BBLKBLKES

Active

E-Switch

DPDT 6,000 TIMES 10A SOLDER LUG 125V ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

E-Switch

DPDT 6,000 TIMES 10A SOLDER LUG 125V ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	RR3130BBLKBLKES

Actuator Marking	No Marking
Actuator Type	Round
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Mechanical Life	20000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	18.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Mechanical Life	Termination Style	Electrical Life	Mounting Type	Actuator Marking	Circuit	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]
E-Switch RR3130BBLKBLKES	20000 Cycles	Solder Lug	6000 Cycles	Panel Mount Threaded Body with Nut	No Marking	DPDT	On-On	10 A	65 °C	0 °C	Black	Round	125 V	18.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Threaded Body with Nut
