SPHWH2L5N607YEW5A3

Samsung Semiconductor, Inc.

LED LH502D WARM WHT 2700K 2020

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.32
		10000	$ 0.31

Description

General part information

SPHWH2L5N Series

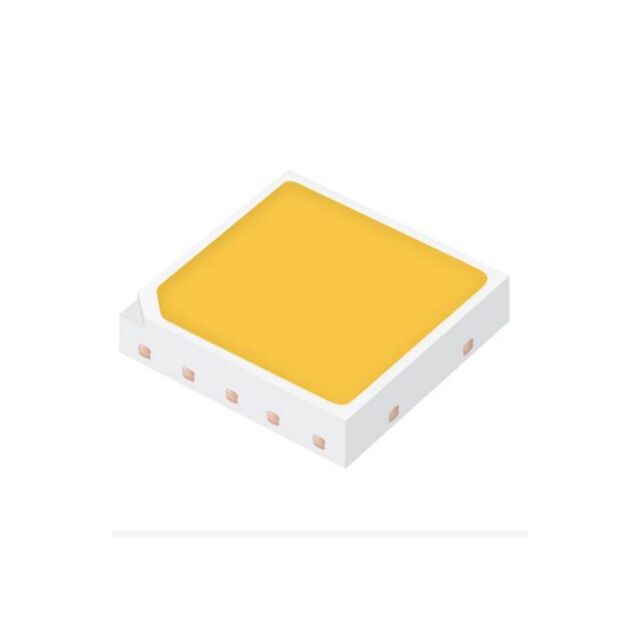

LED Lighting LH502D White, Warm 2700K 5-Step MacAdam Ellipse 6.1V 640mA 120° 2020 (5050 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWH2L5N607YEW5A3	SPHWH2L5N Series

CCT (K)	2700 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	90	70 - 90
Current - Max [Max]	1 A	1 A
Current - Test	640 mA	640 mA
Flux @ 25°C, Current - Test	500 lm	450 - 730 lm
Flux @ 25°C, Current - Test	-	550 - 580 lm
Flux @ 25°C, Current - Test	-	630 - 660 lm
Flux @ 25°C, Current - Test	-	490 lm
Flux @ 25°C, Current - Test	-	410 lm
Flux @ 25°C, Current - Test [Max]	540 lm	540 - 750 lm
Flux @ 25°C, Current - Test [Min]	460 lm	460 - 670 lm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Lumens/Watt @ Current - Test	128 lm/W	115 - 187 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	2020	2020
Package / Case	5050 Metric	5050 Metric
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [y]	0.197 "	0.197 "
Supplier Device Package	2020	2020
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	6.1 V	6.1 V

SPHWH2L5N Series

LED LH502D WARM WHT 2700K 2020

Part	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Supplier Device Package	Thermal Resistance of Package [diameter]	Current - Test	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Current - Max [Max]	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CCT (K)
Samsung Semiconductor, Inc. SPHWH2L5N607YEW3A3	540 lm	460 lm	500 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	128 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	90	120 °	1 A	Warm, White	0.8 mm	0.031 "	2700 K
Samsung Semiconductor, Inc. SPHWH2L5N605YEQ5A3			650 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	166 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	80	120 °	1 A	Cool, White	0.8 mm	0.031 "	5700 K
Samsung Semiconductor, Inc. SPHWH2L5N607YEW5A3	540 lm	460 lm	500 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	128 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	90	120 °	1 A	Warm, White	0.8 mm	0.031 "	2700 K
Samsung Semiconductor, Inc. SPHWH2L5N604YEQ3A3	720 lm	640 lm	680 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	174 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	75	120 °	1 A	Cool, White	0.8 mm	0.031 "	5700 K
Samsung Semiconductor, Inc. SPHWH2L5N605YEU3A3	680 lm	600 lm	640 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	164 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	80	120 °	1 A	Warm, White	0.8 mm	0.031 "	3500 K
Samsung Semiconductor, Inc. SPHWH2L5N605YEQ3A3			650 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	166 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	80	120 °	1 A	Cool, White	0.8 mm	0.031 "	5700 K
Samsung Semiconductor, Inc. SPHWH2L5N607YER3A3				Surface Mount	0.197 in	5 mm	0.197 "	5 mm	143 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	90	120 °	1 A	Cool, White	0.8 mm	0.031 "
Samsung Semiconductor, Inc. SPHWH2L5N607YEU5A3	570 lm	490 lm	530 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	136 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	90	120 °	1 A	Warm, White	0.8 mm	0.031 "
Samsung Semiconductor, Inc. SPHWH2L5N604YEU3A3	720 lm	640 lm	680 lm	Surface Mount	0.197 in	5 mm	0.197 "	5 mm	174 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	75	120 °	1 A	Warm, White	0.8 mm	0.031 "	3500 K
Samsung Semiconductor, Inc. SPHWH2L5N607YET3A3				Surface Mount	0.197 in	5 mm	0.197 "	5 mm	143 lm/W	2020	5050 Metric	2020	3 °C/W	640 mA	6.1 V	90	120 °	1 A	Neutral, White	0.8 mm	0.031 "	4000 K
