VRF154FL
ActiveMicrochip Technology

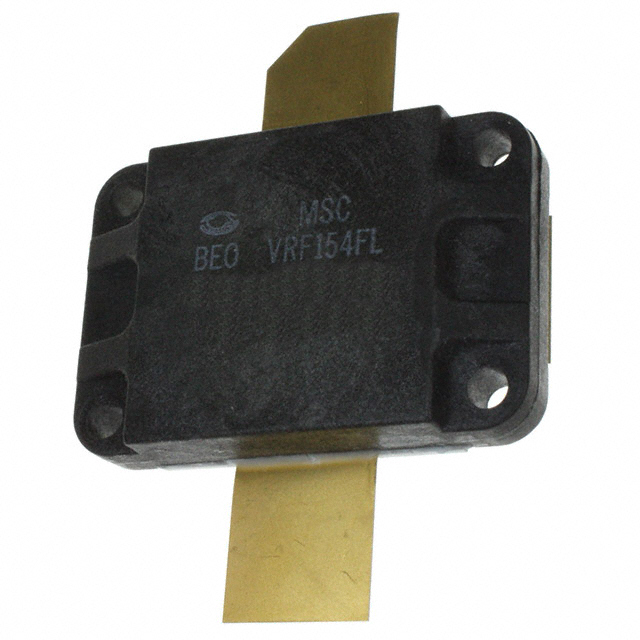

RF MOSFET (VDMOS) 170 V 600 W 30 MHZ T2 T2 PIZZA BOX ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
VRF154FL
ActiveMicrochip Technology
RF MOSFET (VDMOS) 170 V 600 W 30 MHZ T2 T2 PIZZA BOX ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VRF154FL | RF-MOSFET-170V Series |
|---|---|---|
| - | - | |
| Configuration | N-Channel | N-Channel |
| Current - Test | 800 mA | 250 - 800 mA |
| Current Rating (Amps) | 4 mA | 1 - 50 mA |
| Frequency | 80 MHz | 30 - 150 MHz |
| Gain | 17 dBi | 11 - 25 dB |
| Package / Case | T2 | T2, M177, M174, 4-SMD |
| Power - Output | 600 W | 150 - 600 W |
| Supplier Device Package | T2 | T2, M177, M174 |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Voltage - Rated | 170 V | 170 V |
| Voltage - Test | 50 V | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 431.99 | |
| Microchip Direct | PIZZA BOX | 1 | $ 431.99 | |
| 100 | $ 365.53 | |||
| 250 | $ 348.93 | |||
| 500 | $ 339.42 | |||
| 1000 | $ 329.93 | |||
| 5000 | $ 315.69 | |||
| Newark | Each | 1 | $ 431.99 | |
| 100 | $ 365.53 | |||
| 250 | $ 348.93 | |||
| 500 | $ 339.42 | |||
RF-MOSFET-170V Series
170V RF MOSFET
| Part | Frequency | Power - Output | Current - Test | Package / Case | Voltage - Test | Configuration | Current Rating (Amps) | Supplier Device Package | Voltage - Rated | Gain | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VRF157FL | 80 MHz | 600 W | 800 mA | T2 | 50 V | N-Channel | 4 mA | T2 | 170 V | 21 dB | MOSFET (Metal Oxide) |
Microchip Technology VRF2933 | 150 MHz | 300 W | 250 mA | M177 | 50 V | N-Channel | 2 mA | M177 | 170 V | 25 dB | MOSFET (Metal Oxide) |
Microchip Technology VRF2933MP | |||||||||||
Microchip Technology VRF151 | |||||||||||
Microchip Technology VRF161 | |||||||||||
Microchip Technology VRF150MP | 150 MHz | 150 W | 250 mA | M174 | 50 V | N-Channel | 1 mA | M174 | 170 V | 11 dB | MOSFET (Metal Oxide) |
Microchip Technology VRF2933 | |||||||||||
Microchip Technology VRF154FL | |||||||||||
Microchip Technology VRF2944 | 30 MHz | 400 W | 250 mA | M177 | 50 V | N-Channel | 50 A | M177 | 170 V | 22 dBi | MOSFET (Metal Oxide) |
Microchip Technology VRF151G | |||||||||||
Microchip Technology VRF154FL | 80 MHz | 600 W | 800 mA | T2 | 50 V | N-Channel | 4 mA | T2 | 170 V | 17 dBi | MOSFET (Metal Oxide) |
Microchip Technology VRF150MP | |||||||||||
Microchip Technology VRF157FLMP | 80 MHz | 600 W | 800 mA | 4-SMD | 50 V | N-Channel | 4 mA | 170 V | 21 dB | MOSFET (Metal Oxide) | |
Microchip Technology VRF157FL | |||||||||||
Microchip Technology VRF151MP | |||||||||||
Microchip Technology VRF150 | |||||||||||
Microchip Technology VRF157FLMP | |||||||||||
Microchip Technology VRF2944MP | |||||||||||
Microchip Technology VRF150 | 150 MHz | 150 W | 250 mA | M174 | 50 V | N-Channel | 1 mA | M174 | 170 V | 11 dB | MOSFET (Metal Oxide) |
Description
General part information
RF-MOSFET-170V Series
The VRF family of RF MOSFETs includes improved replacements for
