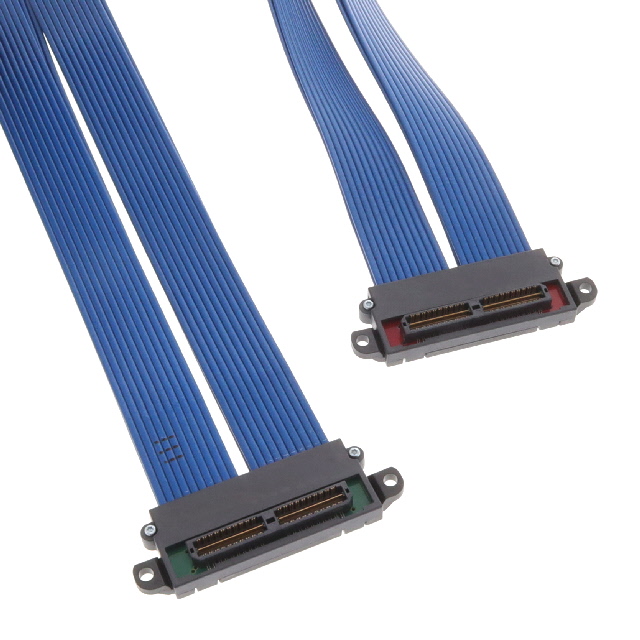

HQDP-040-40.00-TTL-TTL-5-B

Active

Samtec Inc.

CBL ASSM M-M 40PAIR 40" HDR

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSM M-M 40PAIR 40" HDR

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Number of Positions	Number of Rows	Cable Termination	Length [x]	Length [x]	Shielding	Pitch - Cable	Pitch - Cable	Connector Type	Color	Contact Finish	Length	Length	Length	Length
Samtec Inc. HQDP-040-40.00-TTL-TEU-5-B	0.02 in	0.5 mm	80	2	IDC	1.02 m	3.33 '	Unshielded	0.01 in	0.25 mm	Plug to Card Edge	Blue Ribbon	Gold
Samtec Inc. HQDP-040-40.00-TTL-TBR-5-B	0.02 in	0.5 mm	80	2	IDC	1.02 m	3.33 '	Unshielded	0.01 in	0.25 mm	Plug to Plug Reversed	Blue Ribbon	Gold
Samtec Inc. HQDP-040-12.00-TTL-TEU-5-B	0.02 in	0.5 mm	80	2	IDC			Unshielded	0.01 in	0.25 mm	Plug to Card Edge	Blue Ribbon	Gold	1 ft	304.8 mm
Samtec Inc. HQDP-040-40.00-TTL-TTL-5-B	0.02 in	0.5 mm	80	2	IDC	1.02 m	3.33 '	Unshielded	0.01 in	0.25 mm	Plug to Plug	Blue Ribbon	Gold
Samtec Inc. HQDP-040-12.00-TTL-TBR-5-B	0.02 in	0.5 mm	80	2	IDC			Unshielded	0.01 in	0.25 mm	Plug to Plug Reversed	Blue Ribbon	Gold	1 ft	304.8 mm
Samtec Inc. HQDP-040-06.00-TTL-TBR-5-B	0.02 in	0.5 mm	80	2	IDC			Unshielded	0.01 in	0.25 mm	Plug to Plug Reversed	Blue Ribbon	Gold		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Cable Assembly Rectangular Plug to Plug 3.33' (1.02m)

Technical documentation and resources
