ZH2-10.0-0-FSP-SM

Obsolete

TE Connectivity Raychem Cable Protection

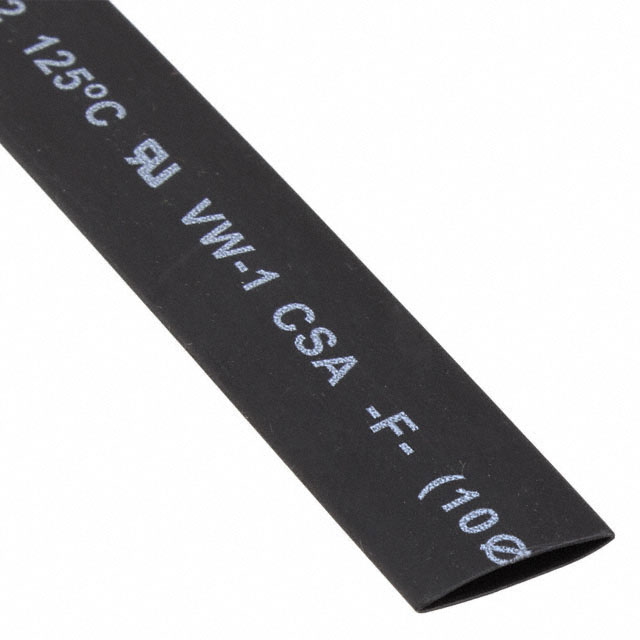

HEAT SHRINK TUBING BLK .409" 1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZH2-10.0-0-FSP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING BLK .409" 1M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZH2 Series

Heat Shrink Tubing, Flexible 0.409" (10.39mm) 2 to 1 Black 3.28' (1.00m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZH2-10.0-0-FSP-SM	ZH2 Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	-	0.079 - 0.551 in
Inner Diameter - Recovered	-	2.01 - 14 mm
Inner Diameter - Recovered [diameter]	5 mm	0.51 - 15.01 mm
Inner Diameter - Recovered [diameter]	0.197 "	0.02 - 0.591 in
Inner Diameter - Supplied	-	0.531 - 0.618 "
Inner Diameter - Supplied	-	13.49 - 15.7 mm
Inner Diameter - Supplied [diameter]	0.409 in	0.059 - 1.264 in
Inner Diameter - Supplied [diameter]	10.39 mm	1.5 - 32.11 mm
Length	-	19.05 - 2000 mm
Length	-	0.75 - 6 "
Length	-	0.062 - 6562 '
Length	-	0.5 '
Length	-	4 "
Length [x]	1 m, 500 m	1 - 500 m
Length [x]	3.28 ft, 1640.4 ft	0.333 - 1640.4 ft
Material	Halogen Free, Polyolefin (PO)	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.56 mm	0.33 - 0.89 mm
Recovered Wall Thickness	0.022 "	0.013 - 0.035 in
Recovered Wall Thickness	-	0.03 "
Shrink Temperature	70 °C	70 °C
Shrinkage Ratio	2 to 1	2 to 1
Type	Tubing, Flexible	Tubing, Flexible

ZH2 Series

HEATSHRK BLK 0.181X2" 1=50PC

Part	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Color	Features	Shrink Temperature	Type	Inner Diameter - Recovered	Inner Diameter - Recovered	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied	Inner Diameter - Supplied	Recovered Wall Thickness	Length	Length [x]
TE Connectivity Raychem Cable Protection ZH2-4.0-0-SP-SM	0.43 mm	0.017 in	25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm	1 in, 1.5 ", 2 ", 3 "	0.083 ft, 0.125 ', 0.167 ', 0.25 ft	Halogen Free, Polyolefin (PO)	4.6 mm	0.181 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible	0.079 in	2.01 mm	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH2-2.0-0-SP-SM	0.43 mm	0.017 in	2000 m		6562 ft	Halogen Free, Polyolefin (PO)	2.59 mm	0.102 "	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.039 in	0.99 mm
TE Connectivity Raychem Cable Protection ZH2-13.0-0-FSP-SM	0.66 mm	0.026 "				Halogen Free, Polyolefin (PO)			2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m, 400 m	3.28 ft, 1312.3 ft	0.256 in	6.5 mm	0.531 "	13.49 mm
TE Connectivity Raychem Cable Protection ZH2-11.0-0-FSP-SM	0.56 mm	0.022 "				Halogen Free, Polyolefin (PO)	11.43 mm	0.45 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible	0.217 in	5.51 mm	125 °C	-30 ░C	1 m, 500 m	3.28 ft, 1640.4 ft
TE Connectivity Raychem Cable Protection ZH2-6.0-0-SP-SM	0.56 mm	0.022 "				Halogen Free, Polyolefin (PO)	6.6 mm	0.26 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.118 in	2.99 mm
TE Connectivity Raychem Cable Protection ZH2-28.0-0-FSP-SM	0.89 mm	0.035 in	200 m		656.2 ft	Halogen Free, Polyolefin (PO)	30 mm	1.181 "	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible	0.551 in	14 mm	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH2-9.0-0-FSP-SM	0.56 mm	0.022 "				Halogen Free, Polyolefin (PO)	9.6 mm	0.378 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.178 in	4.52 mm
TE Connectivity Raychem Cable Protection ZH2-7.0-0-SP-SM	0.56 mm	0.022 "	50 m		164 ft	Halogen Free, Polyolefin (PO)	7.62 mm	0.3 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.138 in	3.51 mm
TE Connectivity Raychem Cable Protection ZH2-18.0-0-FSP-SM	0.76 mm		50 m		164 ft	Halogen Free, Polyolefin (PO)	19 mm	0.748 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.354 in	8.99 mm			0.03 "
TE Connectivity Raychem Cable Protection ZH2-5.0-0-SP-SM	0.56 mm	0.022 "	19.05 mm, 25.4 mm, 50.8 mm, 152.4 mm	0.75 ", 1 in, 2 ", 6 "	0.062 ', 0.083 ft, 0.167 '	Halogen Free, Polyolefin (PO)	5.61 mm	0.221 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	101.6 mm	0.333 ft						0.5 '	4 "
