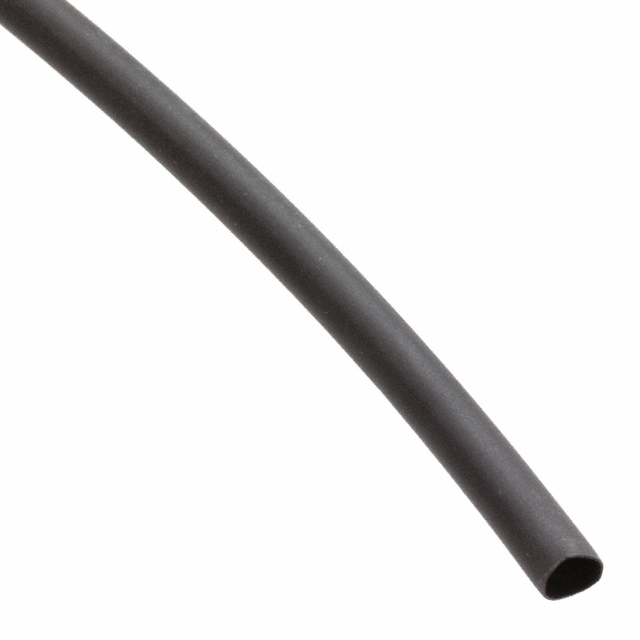

ZH2-5.0-0-SP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRK BLK 0.221X0.75" 1=50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZH2-5.0-0-SP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRK BLK 0.221X0.75" 1=50PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZH2-5.0-0-SP-SM	ZH2 Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	-	0.079 - 0.551 in
Inner Diameter - Recovered	-	2.01 - 14 mm
Inner Diameter - Recovered	-	0.02 - 0.591 in
Inner Diameter - Recovered	-	0.51 - 15.01 mm
Inner Diameter - Supplied	-	0.531 - 0.618 "
Inner Diameter - Supplied	-	13.49 - 15.7 mm
Inner Diameter - Supplied [diameter]	0.221 in	0.059 - 1.264 in
Inner Diameter - Supplied [diameter]	5.61 mm	1.5 - 32.11 mm
Length	0.062 ', 0.083 ft, 0.167 '	0.062 - 6562 '
Length	19.05 mm, 25.4 mm, 152.4 mm, 50.8 mm	19.05 - 2000 mm
Length	0.75 ", 1 in, 6 ", 2 "	0.75 - 6 "
Length	0.5 '	0.5 '
Length [x]	4 "	4 "
Length [x]	0.333 ft	0.333 - 1640.4 ft
Length [x]	101.6 mm	1 - 500 m
Material	Halogen Free, Polyolefin (PO)	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.56 mm	0.33 - 0.89 mm
Recovered Wall Thickness	0.022 "	0.013 - 0.035 in
Recovered Wall Thickness	-	0.03 "
Shrink Temperature	70 °C	70 °C
Shrinkage Ratio	2 to 1	2 to 1
Type	Tubing, Flexible	Tubing, Flexible

ZH2 Series

HEATSHRK BLK 0.181X2" 1=50PC

Part	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Color	Features	Shrink Temperature	Type	Inner Diameter - Recovered	Inner Diameter - Recovered	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied	Inner Diameter - Supplied	Recovered Wall Thickness	Length	Length [x]
TE Connectivity Raychem Cable Protection ZH2-4.0-0-SP-SM	0.43 mm	0.017 in	25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm	1 in, 1.5 ", 2 ", 3 "	0.083 ft, 0.125 ', 0.167 ', 0.25 ft	Halogen Free, Polyolefin (PO)	4.6 mm	0.181 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible	0.079 in	2.01 mm	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH2-2.0-0-SP-SM	0.43 mm	0.017 in	2000 m		6562 ft	Halogen Free, Polyolefin (PO)	2.59 mm	0.102 "	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.039 in	0.99 mm
TE Connectivity Raychem Cable Protection ZH2-13.0-0-FSP-SM	0.66 mm	0.026 "				Halogen Free, Polyolefin (PO)			2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m, 400 m	3.28 ft, 1312.3 ft	0.256 in	6.5 mm	0.531 "	13.49 mm
TE Connectivity Raychem Cable Protection ZH2-11.0-0-FSP-SM	0.56 mm	0.022 "				Halogen Free, Polyolefin (PO)	11.43 mm	0.45 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible	0.217 in	5.51 mm	125 °C	-30 ░C	1 m, 500 m	3.28 ft, 1640.4 ft
TE Connectivity Raychem Cable Protection ZH2-6.0-0-SP-SM	0.56 mm	0.022 "				Halogen Free, Polyolefin (PO)	6.6 mm	0.26 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.118 in	2.99 mm
TE Connectivity Raychem Cable Protection ZH2-28.0-0-FSP-SM	0.89 mm	0.035 in	200 m		656.2 ft	Halogen Free, Polyolefin (PO)	30 mm	1.181 "	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible	0.551 in	14 mm	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection ZH2-9.0-0-FSP-SM	0.56 mm	0.022 "				Halogen Free, Polyolefin (PO)	9.6 mm	0.378 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.178 in	4.52 mm
TE Connectivity Raychem Cable Protection ZH2-7.0-0-SP-SM	0.56 mm	0.022 "	50 m		164 ft	Halogen Free, Polyolefin (PO)	7.62 mm	0.3 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.138 in	3.51 mm
TE Connectivity Raychem Cable Protection ZH2-18.0-0-FSP-SM	0.76 mm		50 m		164 ft	Halogen Free, Polyolefin (PO)	19 mm	0.748 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	1 m	3.28 ft	0.354 in	8.99 mm			0.03 "
TE Connectivity Raychem Cable Protection ZH2-5.0-0-SP-SM	0.56 mm	0.022 "	19.05 mm, 25.4 mm, 50.8 mm, 152.4 mm	0.75 ", 1 in, 2 ", 6 "	0.062 ', 0.083 ft, 0.167 '	Halogen Free, Polyolefin (PO)	5.61 mm	0.221 in	2 to 1	Black	Flame Retardant	70 °C	Tubing, Flexible			125 °C	-30 ░C	101.6 mm	0.333 ft						0.5 '	4 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZH2 Series

Heat Shrink Tubing, Flexible 0.221" (5.61mm) 2 to 1 Black 0.062' (19.05mm, 0.75")
