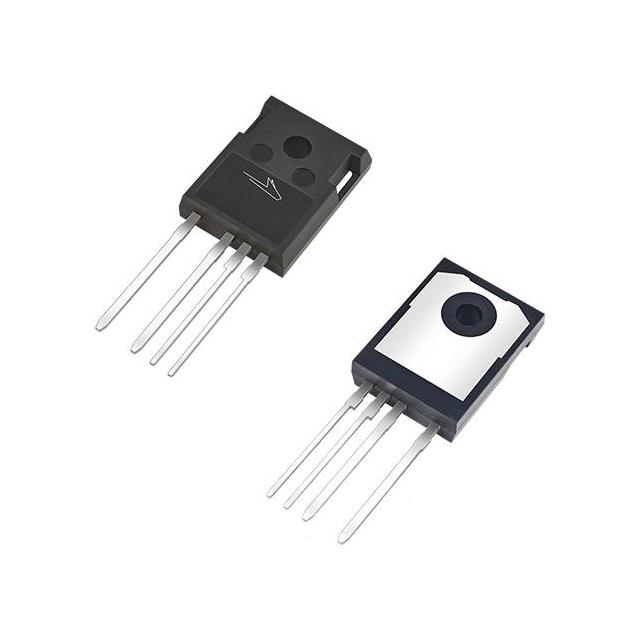

C3M0025075K1

Active

Wolfspeed

SICFET N-CH 750V 80A TO247

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 750V 80A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	C3M0025075K1

Current - Continuous Drain (Id) @ 25°C	80 A
Drain to Source Voltage (Vdss)	750 V
Drive Voltage (Max Rds On, Min Rds On)	15 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	119 nC
Input Capacitance (Ciss) (Max) @ Vds	3055 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-247-4
Power Dissipation (Max)	262 W
Supplier Device Package	TO-247-4L
Vgs (Max) [Max]	19 V
Vgs (Max) [Min]	-8 V
Vgs(th) (Max) @ Id	3.8 V

SICFET N-CH 750V 80A TO247

Part	Package / Case	Vgs (Max) [Min]	Vgs (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Supplier Device Package
Wolfspeed C3M0025075K1	TO-247-4	-8 V	19 V	-40 C	175 °C	N-Channel	750 V	119 nC	3055 pF	15 V	80 A	Through Hole	262 W	3.8 V	TO-247-4L

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 750 V 80A (Ta) 262W (Tc) Through Hole TO-247-4L
