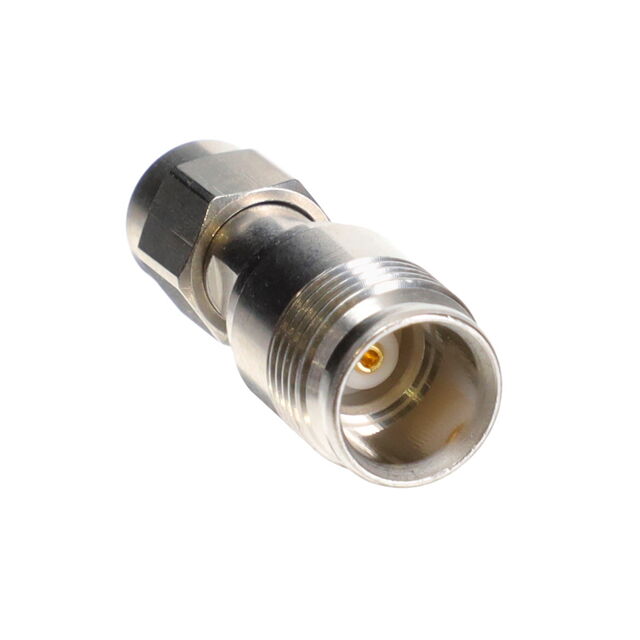

32S189-K00N5

Active

Rosenberger

SMA ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

SMA ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	32S189-K00N5

Adapter Series	NEX10 to SMA
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	NEX10 Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Insertion Loss	0.17 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Fastening Type	Conversion Type	Convert From (Adapter End)	Adapter Series	Dielectric Material	Center Contact Plating	Body Material	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Frequency - Max [Max]	Mounting Type	Style	Body Finish	Center Contact Material	Adapter Type	Impedance
Rosenberger 32S189-K00N5	Snap-On Threaded	Between Series	NEX10 Jack Female Socket	NEX10 to SMA	Polytetrafluoroethylene (PTFE)	Gold	Brass	0.17 dB	-55 °C	125 °C	Male Pin SMA Plug	12 GHz	Free Hanging (In-Line)	Straight	White Bronze	Beryllium Copper Brass	Plug to Jack	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.31

General part information

Adapter Coaxial Connector NEX10 Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
