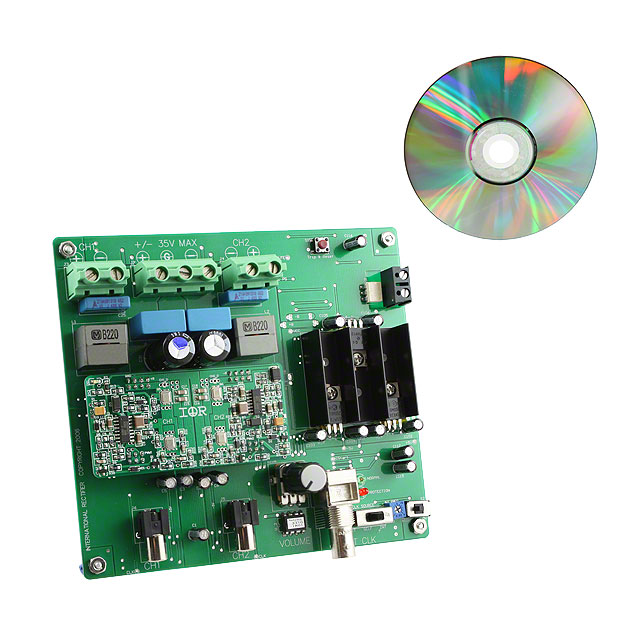

IRAUDAMP4A

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 2-CHANNEL 120W HALF-BRIDGE CLASS-D AUDIO POWER AMPLIFIER FEATURING IRS20957 CONTROLLER IC

Search across all available documentation for this part.

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 2-CHANNEL 120W HALF-BRIDGE CLASS-D AUDIO POWER AMPLIFIER FEATURING IRS20957 CONTROLLER IC

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP4A

Board Type	Fully Populated
Max Output Power x Channels @ Load	120 W
Max Output Power x Channels @ Load [custom]	2
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IRS20957, IRF6645
Voltage - Supply	25 V
Voltage - Supply [Max]	35 V

Part	Board Type	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Utilized IC / Part	Output Type
Infineon Technologies IRAUDAMP4A	Fully Populated	Board(s)	35 V	25 V	120 W	2	IRF6645 IRS20957	2-Channel (Stereo)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 916.37

General part information

IRF6645, IRS20957 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board

Technical documentation and resources
