CCH81-S10-C

Obsolete

Panduit Corp

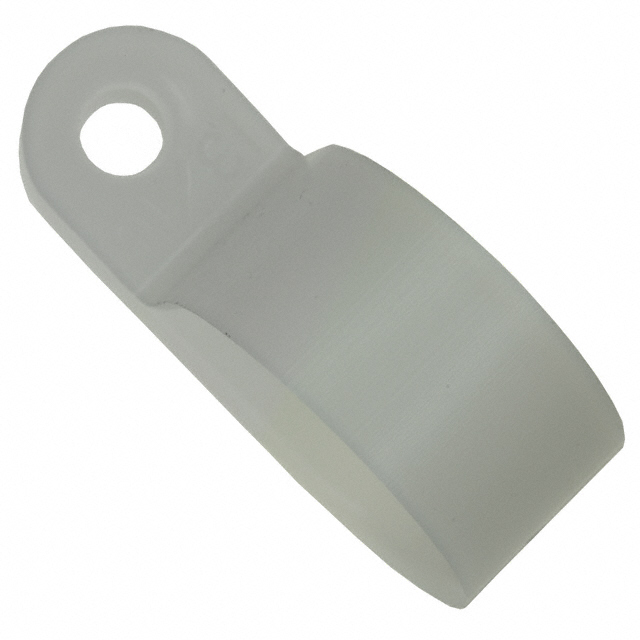

CBL CLAMP P-TYPE NAT FASTENER

Search across all available documentation for this part.

Obsolete

Panduit Corp

CBL CLAMP P-TYPE NAT FASTENER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCH81-S10-C	CCH81 Series

Bundle Center to Mounting Center	0.81 in	0.81 in
Bundle Center to Mounting Center	20.57 mm	20.57 mm
Color	Natural	Natural
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Material Thickness	0.05 in	0.05 in
Material Thickness	1.27 mm	1.27 mm
Mounting Type	Fastener	Fastener
Panel Hole Size	5.16 mm	5.16 mm
Panel Hole Size	0.203 in	0.203 in
Screw Size	M5	M5
Screw Size	#10	#10
Type	Clamp, P-Type	Clamp, P-Type

CBL CLAMP P-TYPE NAT FASTENER

Part	Screw Size	Screw Size	Mounting Type	Color	Material Thickness	Material Thickness	Type	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Panel Hole Size	Panel Hole Size	Material Flammability Rating	Material
Panduit Corp CCH81-S10-C	M5	#10	Fastener	Natural	0.05 in	1.27 mm	Clamp, P-Type	0.81 in	20.57 mm	5.16 mm	0.203 in	UL94 V-2	Polyamide (PA66), Nylon 6/6
Panduit Corp CCH81-S10-D	M5	#10	Fastener	Natural	0.05 in	1.27 mm	Clamp, P-Type	0.81 in	20.57 mm	5.16 mm	0.203 in	UL94 V-2	Polyamide (PA66), Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clamp, P-Type Natural Fastener 0.810" (20.57mm)
